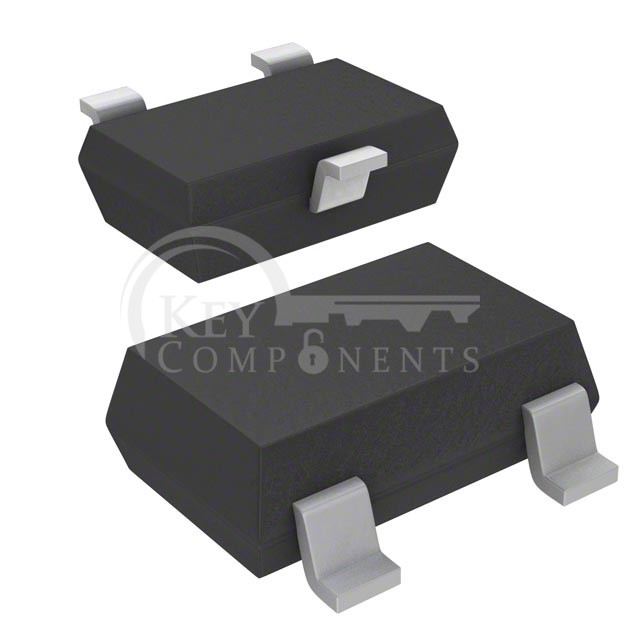

A3290KLHLX-T
| Manufacturer Part | A3290KLHLX-T |
|---|---|
| Manufacturer | Allegro MicroSystems |
| Description | MAGNETIC SWITCH LATCH SOT23W |
| Category | Sensors, Transducers |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Function: | Latch |
| Technology: | Hall Effect |
| Polarization: | South Pole |
| Sensing Range: | 5mT Trip, -5mT Release |
| Test Condition: | 25°C |
| Voltage - Supply: | 3V ~ 24V |
| Current - Supply (Max): | 8mA |
| Current - Output (Max): | 25mA |
| Output Type: | Open Drain |
| Features: | - |
| Operating Temperature: | -40°C ~ 125°C (TA) |
| Mounting Type: | Surface Mount |
| Supplier Device Package: | SOT-23W |
| Package / Case: | SOT-23W |
