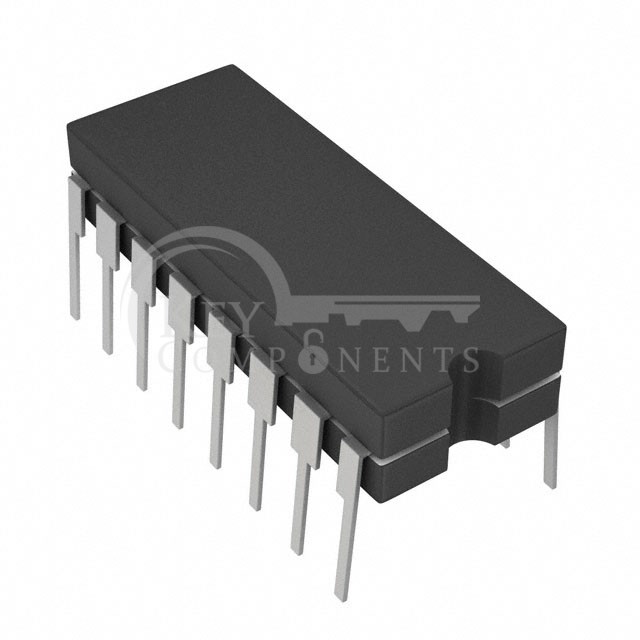

Manufacturer Part | DG201AAK/883B |
---|---|
Manufacturer | Analog Devices Inc./Maxim Integrated |
Description | IC SWITCH QUAD SPST 16CERDIP |
Category | Integrated Circuits (ICs) |
RoHS | Lead free / RoHS Compliant |
Warranty | 365 days |
Datasheet | - |
Type | Description |
---|---|
Product Status: | Active |
Switch Circuit: | SPST - NC |
Multiplexer/Demultiplexer Circuit: | 1:1 |
Number of Circuits: | 4 |
On-State Resistance (Max): | 175Ohm |
Channel-to-Channel Matching (ΔRon): | - |
Voltage - Supply, Single (V+): | - |
Voltage - Supply, Dual (V±): | ±4.5V ~ 18V |
Switch Time (Ton, Toff) (Max): | 600ns, 450ns |
-3db Bandwidth: | - |
Charge Injection: | 20pC |
Channel Capacitance (CS(off), CD(off)): | 5pF, 5pF |
Current - Leakage (IS(off)) (Max): | 1nA |
Crosstalk: | -90dB @ 100kHz |
Operating Temperature: | -55°C ~ 125°C (TA) |
Mounting Type: | Through Hole |
Package / Case: | 16-CDIP (0.300", 7.62mm) |
Supplier Device Package: | 16-CDIP |
