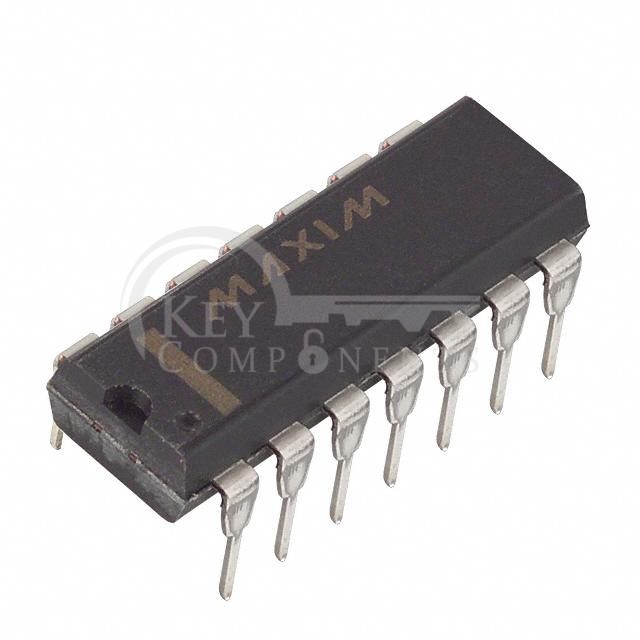

DG304ACJ

Manufacturer Part	DG304ACJ
Manufacturer	Analog Devices Inc./Maxim Integrated
Description	IC SWITCH DUAL SPST 14DIP
Category	Integrated Circuits (ICs)
RoHS	Lead free / RoHS Compliant
Warranty	365 days
Datasheet	-

Type	Description
Product Status:	Obsolete
Switch Circuit:	SPST - NO
Multiplexer/Demultiplexer Circuit:	1:1
Number of Circuits:	2
On-State Resistance (Max):	50Ohm
Channel-to-Channel Matching (ΔRon):	-
Voltage - Supply, Single (V+):	-
Voltage - Supply, Dual (V±):	±5V ~ 18V
Switch Time (Ton, Toff) (Max):	250ns, 150ns
-3db Bandwidth:	-
Charge Injection:	12pC
Channel Capacitance (CS(off), CD(off)):	14pF, 14pF
Current - Leakage (IS(off)) (Max):	5nA
Crosstalk:	-74dB @ 500kHz
Operating Temperature:	0°C ~ 70°C (TA)
Mounting Type:	Through Hole
Package / Case:	14-DIP (0.300", 7.62mm)
Supplier Device Package:	14-PDIP
