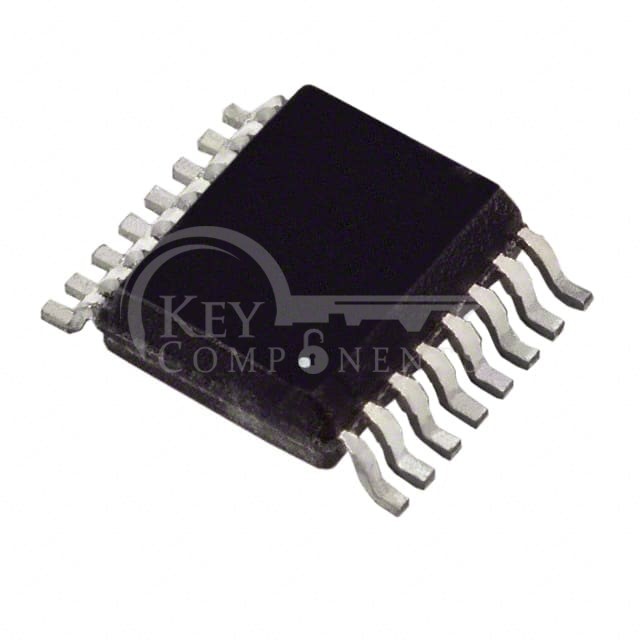

HMC245AQS16E
| Manufacturer Part | HMC245AQS16E |
|---|---|
| Manufacturer | Analog Devices Inc. |
| Description | IC RF SWITCH SP3T 3.5GHZ 16QSOP |
| Category | RF/IF and RFID |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| RF Type: | CATV |
| Topology: | Absorptive |
| Circuit: | SP3T |
| Frequency Range: | 0Hz ~ 3.5GHz |
| Isolation: | 36dB |
| Insertion Loss: | 0.8dB |
| Test Frequency: | 2.5GHz |
| P1dB: | 29dBm |
| IIP3: | 48dBm |
| Features: | - |
| Impedance: | 50Ohm |
| Voltage - Supply: | 5V |
| Operating Temperature: | -40°C ~ 85°C |
| Package / Case: | 16-SSOP (0.154", 3.90mm Width) |
| Supplier Device Package: | 16-QSOP |
