HMC685LP4E
| Manufacturer Part | HMC685LP4E |
|---|---|
| Manufacturer | Analog Devices Inc. |
| Description | IC MMIC MIXER LO AMP 24-QFN |
| Category | RF/IF and RFID |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Obsolete |
| RF Type: | LTE, WiMax |
| Frequency: | 1.7GHz ~ 2.2GHz |
| Number of Mixers: | 1 |
| Gain: | - |
| Noise Figure: | 8dB |
| Secondary Attributes: | Up/Down Converter |
| Current - Supply: | 120mA |
| Voltage - Supply: | 4.75V ~ 5.25V |
| Mounting Type: | Surface Mount |

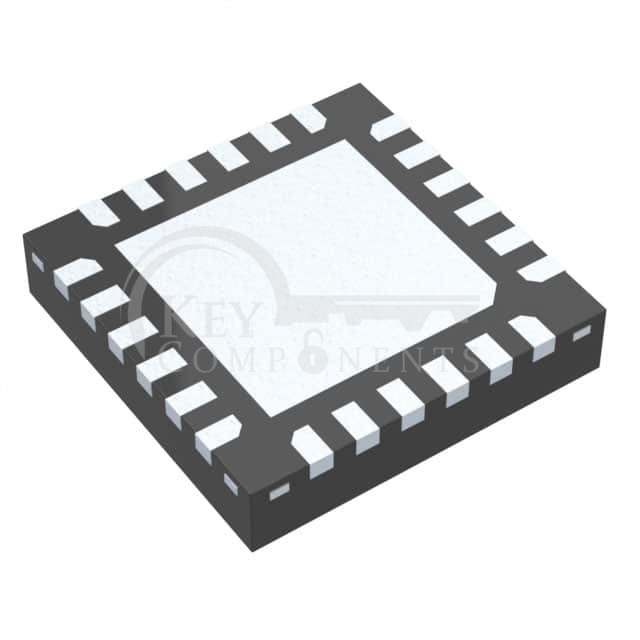

| Package / Case: | 24-VFQFN Exposed Pad |
| Supplier Device Package: | 24-QFN (4x4) |
Shipping
| Shipping Type | Ship Fee | Lead Time |
| DHL | $20.00-$40.00 (0.50 KG) | 2-5 days |
| Fedex | $20.00-$40.00 (0.50 KG) | 2-5 days |
| UPS | $20.00-$40.00 (0.50 KG) | 2-5 days |
| TNT | $20.00-$40.00 (0.50 KG) | 2-6 days |
| EMS | $20.00-$40.00 (0.50 KG) | 3-7 days |
| REGISTERED AIR MAIL | $2.5-$7 (0.50 KG) | 20-35 days |
Payment
| Payment method | Hand Fee |
| Telegraphic Transfer | charge US$30.00 banking fee. |
| Paypal | charge 4.0% service fee. |
| Credit Card | charge 4% service fee. |
| Western Union | charge US$0.00 banking fee. |
| Money Gram | charge US$0.00 banking fee. |
Guarantees
- We provide 90 days warranty;
- The Pre-Shipment Inspection (PSI) will be applied;
- If some of the items you received aren't of perfect quality, we would responsibly arrange your refund or replacement. But the items must remain their original condition;
- If you don't receive the item in 25 days, just let us know, a new package or replacement will be issued.
- If your item is significantly different from our product description, you can A: Return it and get a full refund, or B: Get a partial refund and keep the item.
- Taxes & VAT will not be included;
