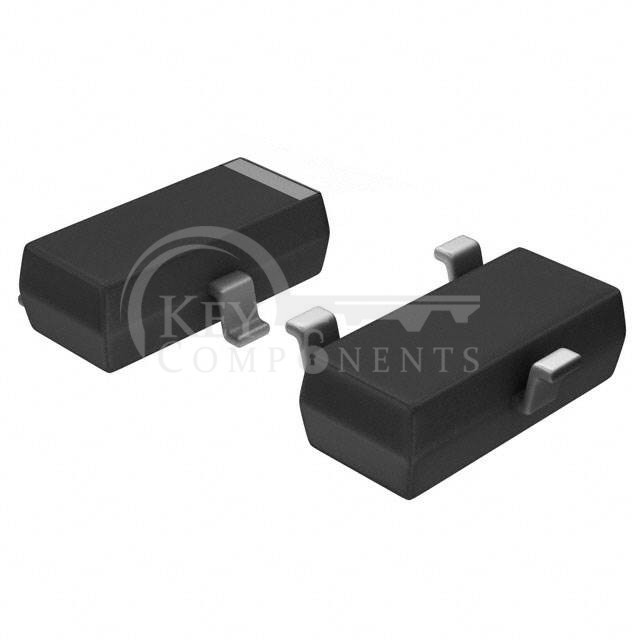

HSMP-3820-TR1
| Manufacturer Part | HSMP-3820-TR1 |
|---|---|
| Manufacturer | Broadcom Limited |
| Description | RF DIODE PIN 50V SOT23-3 |
| Category | Discrete Semiconductor Products |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Obsolete |
| Diode Type: | PIN - Single |
| Voltage - Peak Reverse (Max): | 50V |
| Current - Max: | 1 A |
| Capacitance @ Vr, F: | 0.8pF @ 20V, 1MHz |
| Resistance @ If, F: | 600mOhm @ 10mA, 100MHz |
| Power Dissipation (Max): | - |
| Operating Temperature: | 150°C (TJ) |
| Package / Case: | TO-236-3, SC-59, SOT-23-3 |
| Supplier Device Package: | SOT-23-3 |
