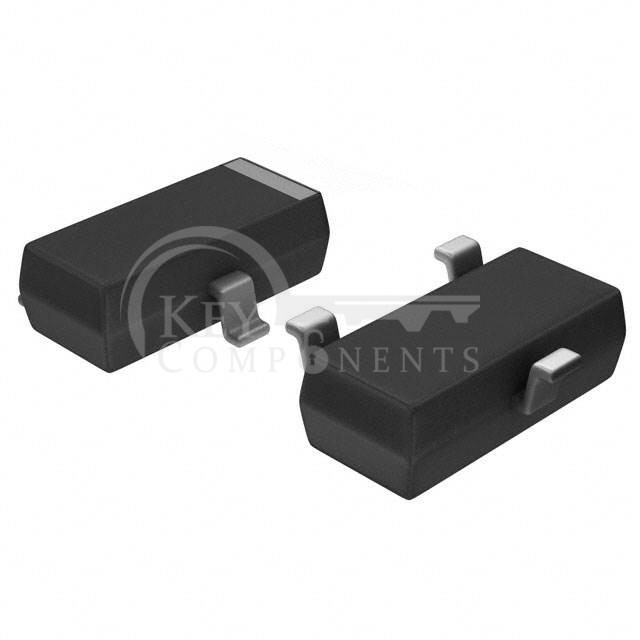

HSMS-2822-TR1G
| Manufacturer Part | HSMS-2822-TR1G |
|---|---|
| Manufacturer | Broadcom Limited |
| Description | RF DIODE SCHOTTKY 15V SOT23-3 |
| Category | Discrete Semiconductor Products |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Obsolete |
| Diode Type: | Schottky - 1 Pair Series Connection |
| Voltage - Peak Reverse (Max): | 15V |
| Current - Max: | 1 A |
| Capacitance @ Vr, F: | 1pF @ 0V, 1MHz |
| Resistance @ If, F: | 12Ohm @ 5mA, 1MHz |
| Power Dissipation (Max): | - |
| Operating Temperature: | 150°C (TJ) |
| Package / Case: | TO-236-3, SC-59, SOT-23-3 |
| Supplier Device Package: | SOT-23-3 |
