CY23S09SXC-1T
| Manufacturer Part | CY23S09SXC-1T |
|---|---|
| Manufacturer | Cypress Semiconductor Corp |
| Description | PLL BASED CLOCK DRIVER, 23S SERI |
| Category | Integrated Circuits (ICs) |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Obsolete |
| Type: | Fanout Buffer (Distribution), Zero Delay Buffer |
| PLL: | Yes with Bypass |
| Input: | LVCMOS, LVTTL |
| Output: | LVCMOS |
| Number of Circuits: | 1 |
| Ratio - Input:Output: | 1:9 |
| Differential - Input:Output: | No/No |
| Frequency - Max: | 133.33MHz |
| Divider/Multiplier: | No/No |
| Voltage - Supply: | 3V ~ 3.6V |
| Operating Temperature: | 0°C ~ 70°C |
| Mounting Type: | Surface Mount |

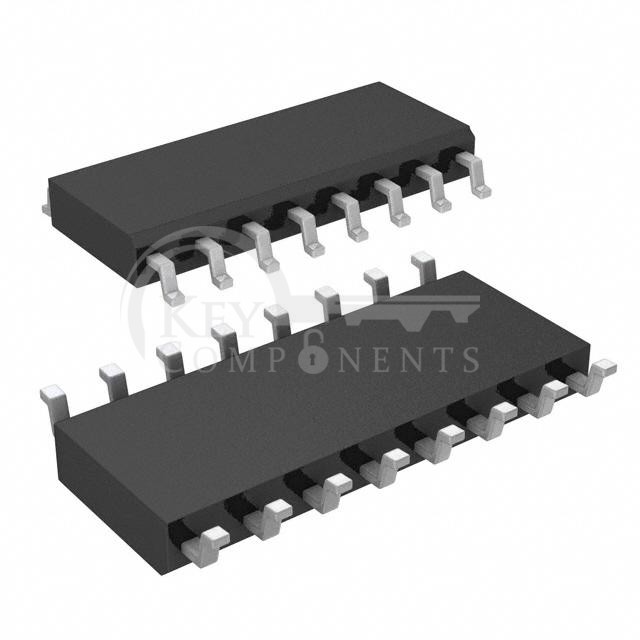

| Package / Case: | 16-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package: | 16-SOIC |
Shipping
| Shipping Type | Ship Fee | Lead Time |
| DHL | $20.00-$40.00 (0.50 KG) | 2-5 days |
| Fedex | $20.00-$40.00 (0.50 KG) | 2-5 days |
| UPS | $20.00-$40.00 (0.50 KG) | 2-5 days |
| TNT | $20.00-$40.00 (0.50 KG) | 2-6 days |
| EMS | $20.00-$40.00 (0.50 KG) | 3-7 days |
| REGISTERED AIR MAIL | $2.5-$7 (0.50 KG) | 20-35 days |
Payment
| Payment method | Hand Fee |
| Telegraphic Transfer | charge US$30.00 banking fee. |
| Paypal | charge 4.0% service fee. |
| Credit Card | charge 4% service fee. |
| Western Union | charge US$0.00 banking fee. |
| Money Gram | charge US$0.00 banking fee. |
Guarantees
- We provide 90 days warranty;
- The Pre-Shipment Inspection (PSI) will be applied;
- If some of the items you received aren't of perfect quality, we would responsibly arrange your refund or replacement. But the items must remain their original condition;
- If you don't receive the item in 25 days, just let us know, a new package or replacement will be issued.
- If your item is significantly different from our product description, you can A: Return it and get a full refund, or B: Get a partial refund and keep the item.
- Taxes & VAT will not be included;
