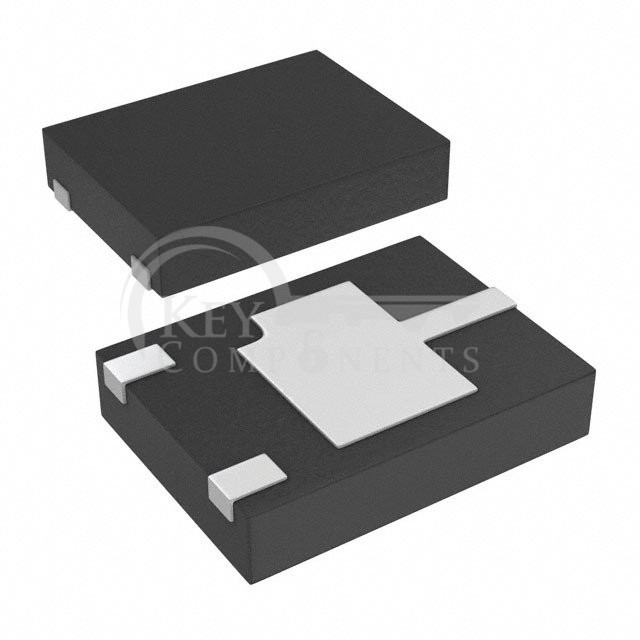

AH1802-FY4G-7
| Manufacturer Part | AH1802-FY4G-7 |
|---|---|
| Manufacturer | Diodes Incorporated |
| Description | MAGNETIC SWITCH OMNIPOLAR 3DFN |
| Category | Sensors, Transducers |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Function: | Omnipolar Switch |
| Technology: | Hall Effect |
| Polarization: | North Pole, South Pole |
| Sensing Range: | ±4mT Trip, ±1mT Release |
| Test Condition: | 25°C |
| Voltage - Supply: | 2.5V ~ 5.5V |
| Current - Supply (Max): | 16µA |
| Current - Output (Max): | - |
| Output Type: | Open Drain |
| Features: | - |
| Operating Temperature: | -40°C ~ 85°C (TA) |
| Mounting Type: | Surface Mount |
| Supplier Device Package: | X2-DFN2015-3 |
| Package / Case: | 3-XDFN |
