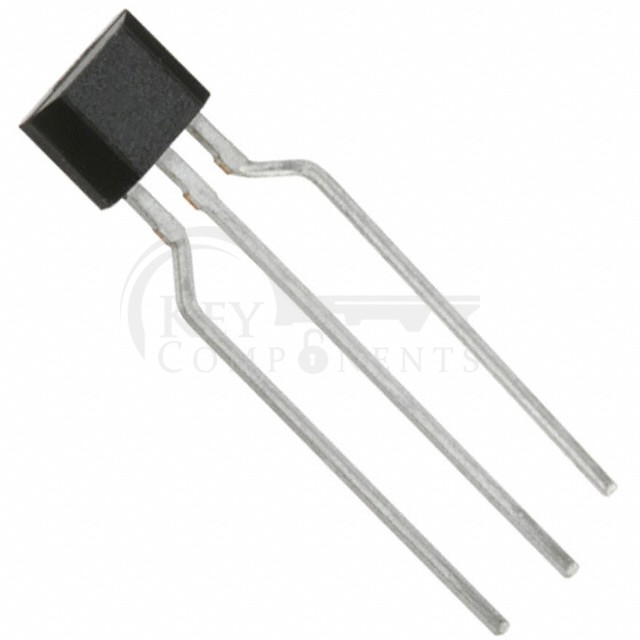

AH1807-P-A
| Manufacturer Part | AH1807-P-A |
|---|---|
| Manufacturer | Diodes Incorporated |
| Description | MAGNETIC SWITCH OMNIPOLAR 3SIP |
| Category | Sensors, Transducers |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Function: | Omnipolar Switch |
| Technology: | Hall Effect |
| Polarization: | North Pole, South Pole |
| Sensing Range: | ±11.5mT Trip, ±10mT Release |
| Test Condition: | -40°C ~ 125°C |
| Voltage - Supply: | 2.5V ~ 5.5V |
| Current - Supply (Max): | 16µA |
| Current - Output (Max): | 2.5mA |
| Output Type: | Open Drain |
| Features: | - |
| Operating Temperature: | -40°C ~ 125°C (TA) |
| Mounting Type: | Through Hole |
| Supplier Device Package: | 3-SIP |
| Package / Case: | 3-SIP, Formed Leads |
