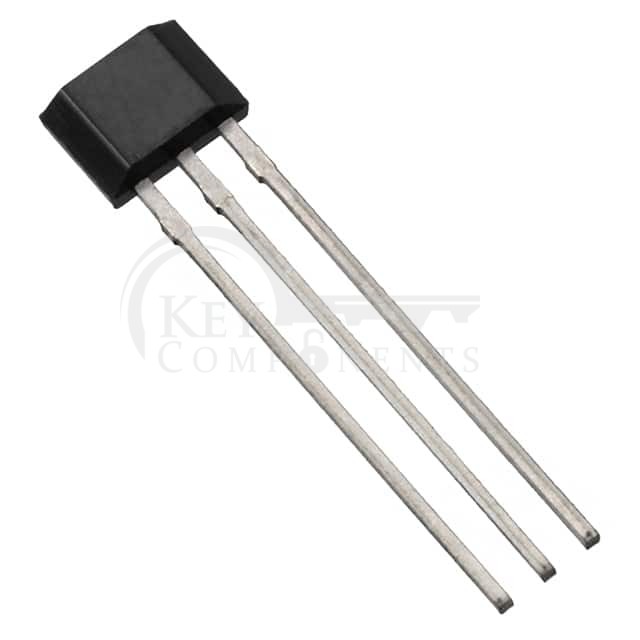

AH3367Q-P-A
| Manufacturer Part | AH3367Q-P-A |
|---|---|
| Manufacturer | Diodes Incorporated |
| Description | MAGNETIC SWITCH UNIPOLAR 3SIP |
| Category | Sensors, Transducers |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Function: | Unipolar Switch |
| Technology: | Hall Effect |
| Polarization: | South Pole |
| Sensing Range: | 11.5mT Trip, 9mT Release |
| Test Condition: | 25°C |
| Voltage - Supply: | 3V ~ 28V |
| Current - Supply (Max): | 4mA |
| Current - Output (Max): | 60mA |
| Output Type: | Open Drain |
| Features: | - |
| Operating Temperature: | -40°C ~ 150°C (TA) |
| Mounting Type: | Through Hole |
| Supplier Device Package: | 3-SIP |
| Package / Case: | 3-SIP, Formed Leads |
