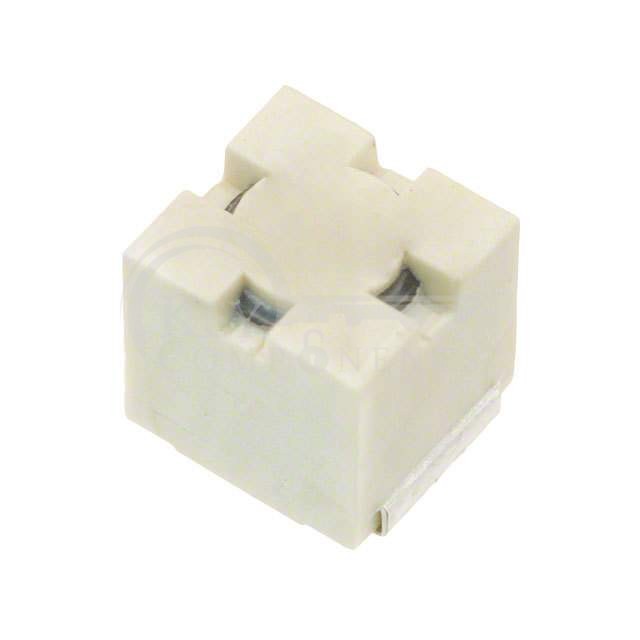

B82442A1106K000
| Manufacturer Part | B82442A1106K000 |
|---|---|
| Manufacturer | EPCOS - TDK Electronics |
| Description | FIXED IND 10MH 25MA 120 OHM SMD |
| Category | Inductors, Coils, Chokes |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Obsolete |
| Type: | Drum Core, Wirewound |
| Material - Core: | Ferrite |
| Inductance: | 10 mH |
| Tolerance: | ±10% |
| Current Rating (Amps): | 25 mA |
| Current - Saturation (Isat): | - |
| Shielding: | Unshielded |
| DC Resistance (DCR): | 120Ohm Max |
| Q @ Freq: | 30 @ 79.6kHz |
| Frequency - Self Resonant: | 500kHz |
| Ratings: | AEC-Q200 |
| Operating Temperature: | -55°C ~ 125°C |
| Inductance Frequency - Test: | 79.6 kHz |
| Features: | - |
| Mounting Type: | Surface Mount |
| Package / Case: | 2-SMD, J-Lead |
| Supplier Device Package: | 2220 (5650 Metric) |
| Size / Dimension: | 0.220" L x 0.197" W (5.60mm x 5.00mm) |
| Height - Seated (Max): | 0.209" (5.30mm) |
