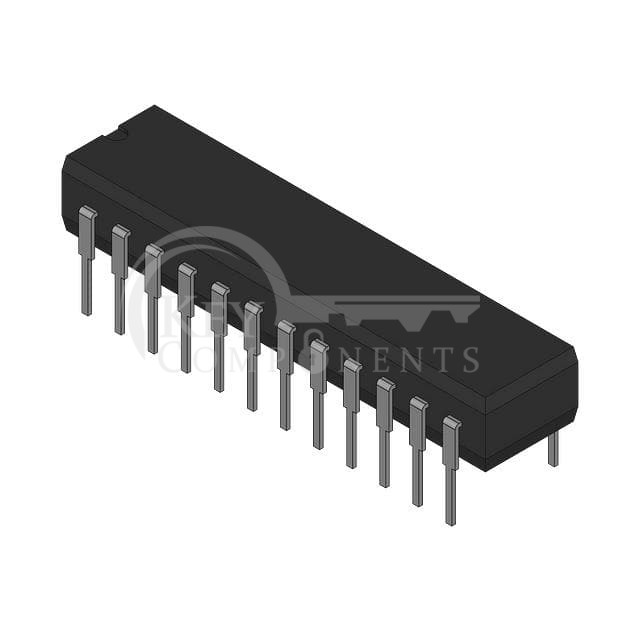

74F543PC
| Manufacturer Part | 74F543PC |
|---|---|
| Manufacturer | Fairchild Semiconductor |
| Description | IC TXRX NON-INVERT 5.5V 24DIP |
| Category | Integrated Circuits (ICs) |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Obsolete |
| Logic Type: | Transceiver, Non-Inverting |
| Number of Elements: | 1 |
| Number of Bits per Element: | 8 |
| Input Type: | - |
| Output Type: | 3-State |
| Current - Output High, Low: | 3mA, 24mA; 3mA, 64mA |
| Voltage - Supply: | 4.5V ~ 5.5V |
| Operating Temperature: | 0°C ~ 70°C (TA) |
| Mounting Type: | Through Hole |
| Package / Case: | 24-DIP (0.600", 15.24mm) |
| Supplier Device Package: | 24-PDIP |
