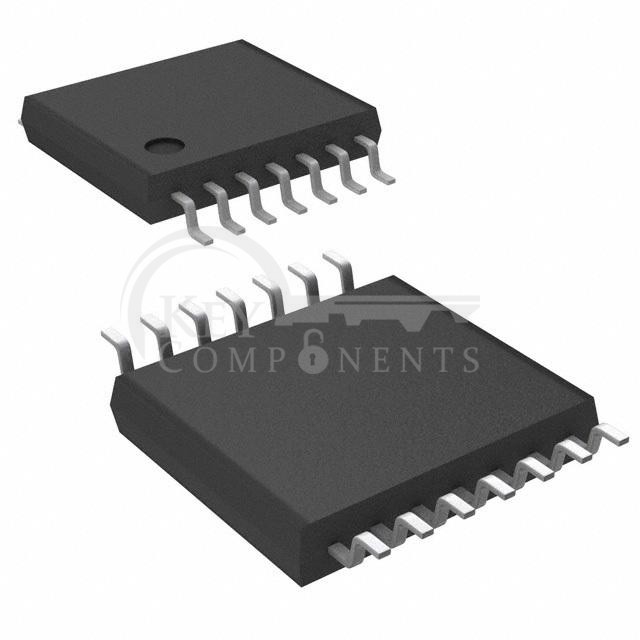

74VCX08MTC
| Manufacturer Part | 74VCX08MTC |
|---|---|
| Manufacturer | Fairchild Semiconductor |
| Description | AND GATE, ALVC/VCX/A SERIES, 4-F |
| Category | Integrated Circuits (ICs) |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Logic Type: | AND Gate |
| Number of Circuits: | 4 |
| Number of Inputs: | 2 |
| Features: | - |
| Voltage - Supply: | 1.2V ~ 3.6V |
| Current - Quiescent (Max): | 20 µA |
| Current - Output High, Low: | 24mA, 24mA |
| Logic Level - Low: | 0.7V ~ 0.8V |
| Logic Level - High: | 1.6V ~ 2V |
| Max Propagation Delay @ V, Max CL: | 2.8ns @ 3.3V, 30pF |
| Operating Temperature: | -40°C ~ 85°C |
| Mounting Type: | Surface Mount |
| Supplier Device Package: | 14-TSSOP |
| Package / Case: | 14-TSSOP (0.173", 4.40mm Width) |
