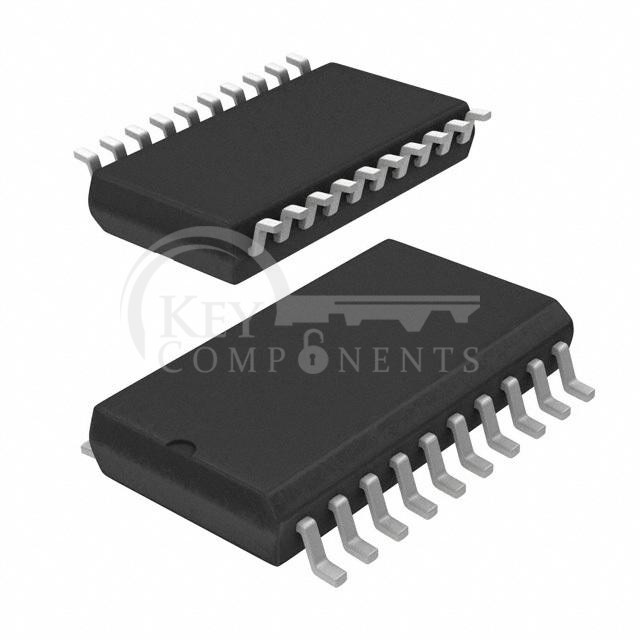

74VHC244SJ
| Manufacturer Part | 74VHC244SJ |
|---|---|
| Manufacturer | Fairchild Semiconductor |
| Description | IC BUFFER NON-INVERT 5.5V 20SOP |
| Category | Integrated Circuits (ICs) |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Obsolete |
| Logic Type: | Buffer, Non-Inverting |
| Number of Elements: | 2 |
| Number of Bits per Element: | 4 |
| Input Type: | - |
| Output Type: | 3-State |
| Current - Output High, Low: | 8mA, 8mA |
| Voltage - Supply: | 2V ~ 5.5V |
| Operating Temperature: | -40°C ~ 85°C (TA) |
| Mounting Type: | Surface Mount |
| Package / Case: | 20-SOIC (0.209", 5.30mm Width) |
| Supplier Device Package: | 20-SOP |
