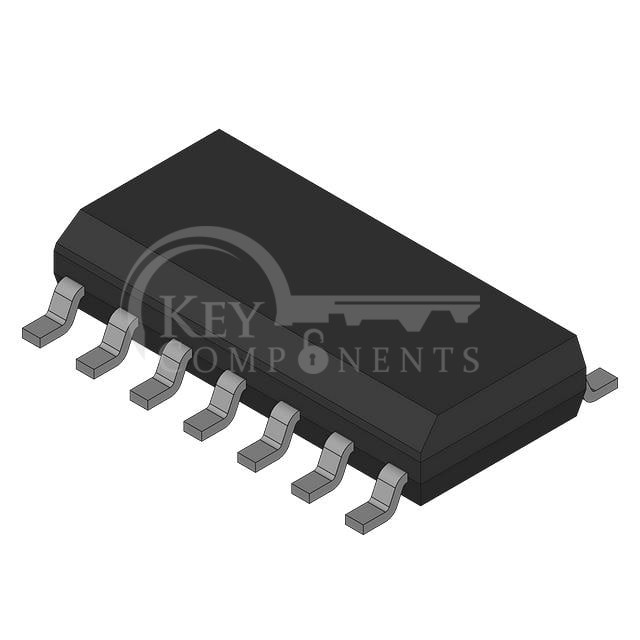

DM74LS32SJX
| Manufacturer Part | DM74LS32SJX |
|---|---|
| Manufacturer | Fairchild Semiconductor |
| Description | OR GATE, LS SERIES TTL |
| Category | Integrated Circuits (ICs) |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Logic Type: | OR Gate |
| Number of Circuits: | 4 |
| Number of Inputs: | 2 |
| Features: | - |
| Voltage - Supply: | 4.75V ~ 5.25V |
| Current - Quiescent (Max): | 9.8 mA |
| Current - Output High, Low: | 400µA, 8mA |
| Logic Level - Low: | 0.8V |
| Logic Level - High: | 2V |
| Max Propagation Delay @ V, Max CL: | 15ns @ 5V, 50pF |
| Operating Temperature: | 0°C ~ 70°C |
| Mounting Type: | Surface Mount |
| Supplier Device Package: | 14-SOP |
| Package / Case: | 14-SOIC (0.209", 5.30mm Width) |
