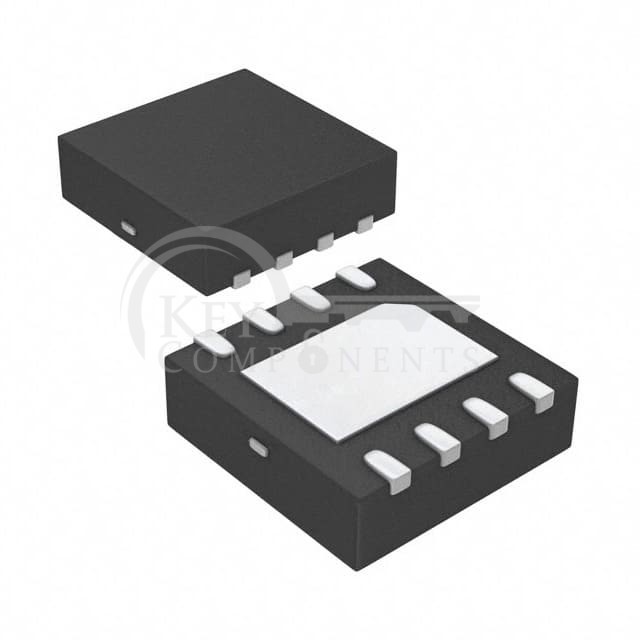

FAN5009MPX

Manufacturer Part	FAN5009MPX
Manufacturer	Fairchild Semiconductor
Description	HALF BRIDGE BASED MOSFET DRIVER
Category	Integrated Circuits (ICs)
RoHS	Lead free / RoHS Compliant
Warranty	365 days
Datasheet	-

Type	Description
Product Status:	Obsolete
Driven Configuration:	Half-Bridge
Channel Type:	Synchronous
Number of Drivers:	2
Gate Type:	N-Channel MOSFET
Voltage - Supply:	10V ~ 13.5V
Logic Voltage - VIL, VIH:	0.8V, 2.5V
Current - Peak Output (Source, Sink):	-
Input Type:	Inverting, Non-Inverting
High Side Voltage - Max (Bootstrap):	15 V
Rise / Fall Time (Typ):	40ns, 20ns
Operating Temperature:	0°C ~ 125°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	8-VDFN Exposed Pad
Supplier Device Package:	8-MLP (5x6)
