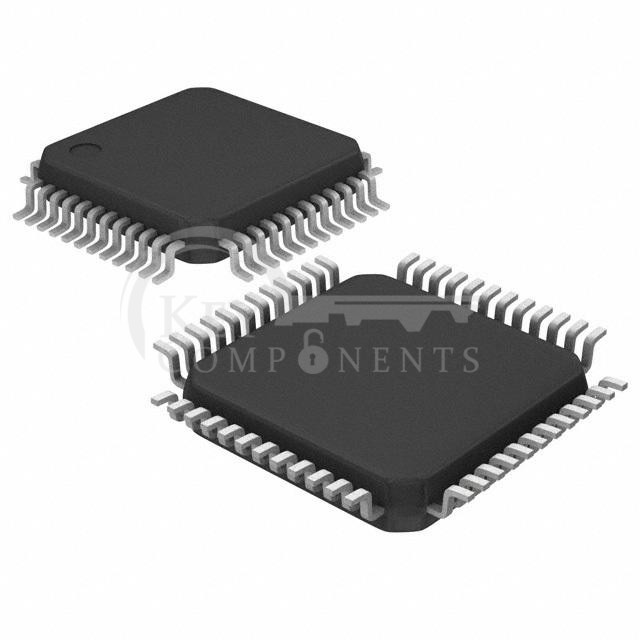

S9S08DZ60F2CLF
| Manufacturer Part | S9S08DZ60F2CLF |
|---|---|
| Manufacturer | Freescale Semiconductor |
| Description | IC MCU 8BIT 60KB FLASH 48LQFP |
| Category | Integrated Circuits (ICs) |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Core Processor: | S08 |
| Core Size: | 8-Bit |
| Speed: | 40MHz |
| Connectivity: | CANbus, I²C, LINbus, SCI, SPI |
| Peripherals: | LVD, POR, PWM, WDT |
| Number of I/O: | 39 |
| Program Memory Size: | 60KB (60K x 8) |
| Program Memory Type: | FLASH |
| EEPROM Size: | 2K x 8 |
| RAM Size: | 4K x 8 |
| Voltage - Supply (Vcc/Vdd): | 2.7V ~ 5.5V |
| Data Converters: | A/D 16x12b |
| Oscillator Type: | External |
| Operating Temperature: | -40°C ~ 85°C (TA) |
| Mounting Type: | Surface Mount |
| Package / Case: | 48-LQFP |
| Supplier Device Package: | 48-LQFP (7x7) |
