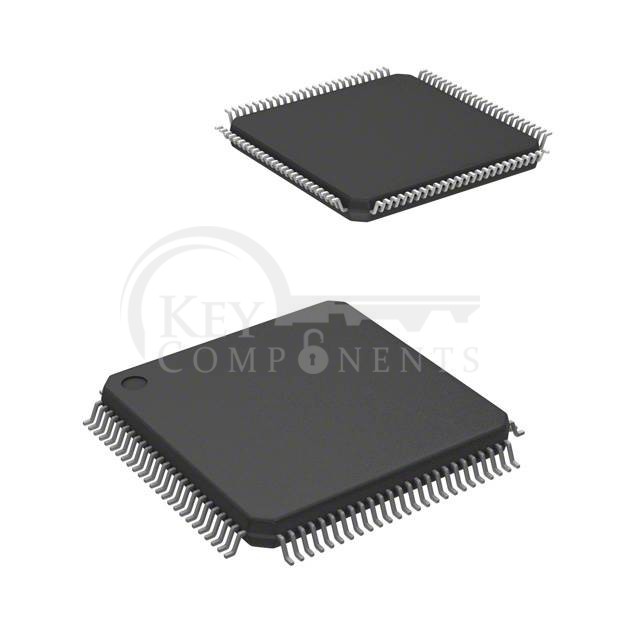

S9S12HY48J0CLL
| Manufacturer Part | S9S12HY48J0CLL |
|---|---|
| Manufacturer | Freescale Semiconductor |
| Description | IC MCU 16BIT 48KB FLASH 100LQFP |
| Category | Integrated Circuits (ICs) |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Core Processor: | HCS12 |
| Core Size: | 16-Bit |
| Speed: | 32MHz |
| Connectivity: | CANbus, EBI/EMI, I²C, IrDA, LINbus, SCI, SPI |
| Peripherals: | LCD, Motor control PWM, POR, PWM, WDT |
| Number of I/O: | 80 |
| Program Memory Size: | 48KB (48K x 8) |
| Program Memory Type: | FLASH |
| EEPROM Size: | 4K x 8 |
| RAM Size: | 4K x 8 |
| Voltage - Supply (Vcc/Vdd): | 4.5V ~ 5.5V |
| Data Converters: | A/D 8x10b |
| Oscillator Type: | Internal |
| Operating Temperature: | -40°C ~ 85°C (TA) |
| Mounting Type: | Surface Mount |
| Package / Case: | 100-LQFP |
| Supplier Device Package: | 100-LQFP (14x14) |
