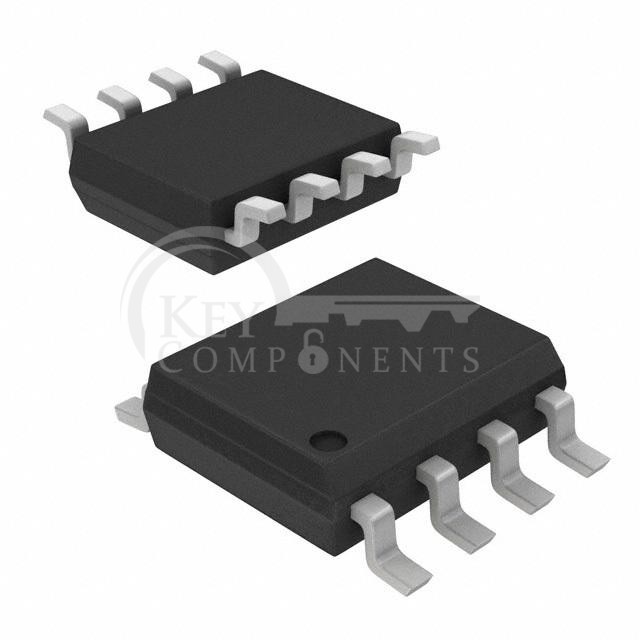

IR20153STRPBF
| Manufacturer Part | IR20153STRPBF |
|---|---|
| Manufacturer | Infineon Technologies |
| Description | IC GATE DRVR HIGH-SIDE 8SOIC |
| Category | Integrated Circuits (ICs) |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Obsolete |
| Driven Configuration: | High-Side |
| Channel Type: | Single |
| Number of Drivers: | 1 |
| Gate Type: | N-Channel MOSFET |
| Voltage - Supply: | 5V ~ 20V |
| Logic Voltage - VIL, VIH: | 1.4V, 3V |
| Current - Peak Output (Source, Sink): | 1.5A, 1.5A |
| Input Type: | Inverting |
| High Side Voltage - Max (Bootstrap): | 150 V |
| Rise / Fall Time (Typ): | 200ns, 100ns |
| Operating Temperature: | -55°C ~ 150°C (TJ) |
| Mounting Type: | Surface Mount |
| Package / Case: | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package: | 8-SOIC |
