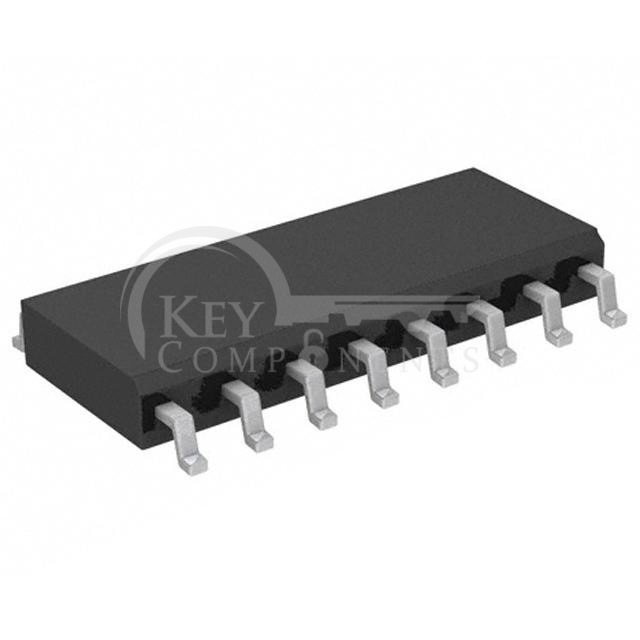

HIP6302CBZ

Manufacturer Part	HIP6302CBZ
Manufacturer	Intersil
Description	MICROPROCESSOR CORE VOLTAGE REG
Category	Integrated Circuits (ICs)
RoHS	Lead free / RoHS Compliant
Warranty	365 days
Datasheet	-

Type	Description
Product Status:	Active
Output Type:	PWM Signal
Function:	Step-Down
Output Configuration:	Positive
Topology:	Buck
Number of Outputs:	2
Output Phases:	2
Voltage - Supply (Vcc/Vdd):	4.75V ~ 5.25V
Frequency - Switching:	50kHz ~ 1.5MHz
Duty Cycle (Max):	-
Synchronous Rectifier:	-
Clock Sync:	No
Serial Interfaces:	-
Control Features:	Enable, Frequency Control, Power Good
Operating Temperature:	0°C ~ 70°C (TA)
Mounting Type:	Surface Mount
Package / Case:	16-SOIC (0.154", 3.90mm Width)
Supplier Device Package:	16-SOIC
