ISL6559CB-T
| Manufacturer Part | ISL6559CB-T |
|---|---|
| Manufacturer | Intersil |
| Description | SWITCHING CONTROLLER |
| Category | Integrated Circuits (ICs) |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Obsolete |
| Output Type: | PWM Signal |
| Function: | Step-Down |
| Output Configuration: | Positive |
| Topology: | Buck |
| Number of Outputs: | 4 |
| Output Phases: | 4 |
| Voltage - Supply (Vcc/Vdd): | 4.75V ~ 5.25V |
| Frequency - Switching: | 80kHz ~ 1MHz |
| Duty Cycle (Max): | 75% |
| Synchronous Rectifier: | - |
| Clock Sync: | No |
| Serial Interfaces: | - |
| Control Features: | Current Limit, Enable, Frequency Control, Power Good |
| Operating Temperature: | 0°C ~ 70°C (TA) |
| Mounting Type: | Surface Mount |

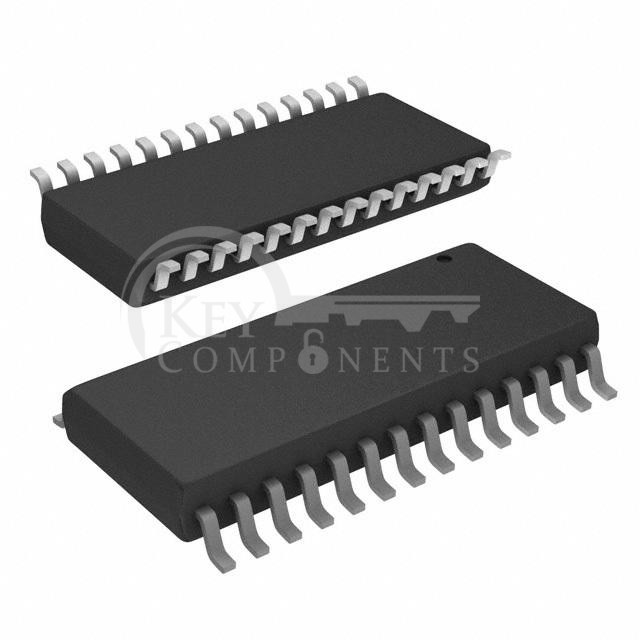

| Package / Case: | 28-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package: | 28-SOIC |
