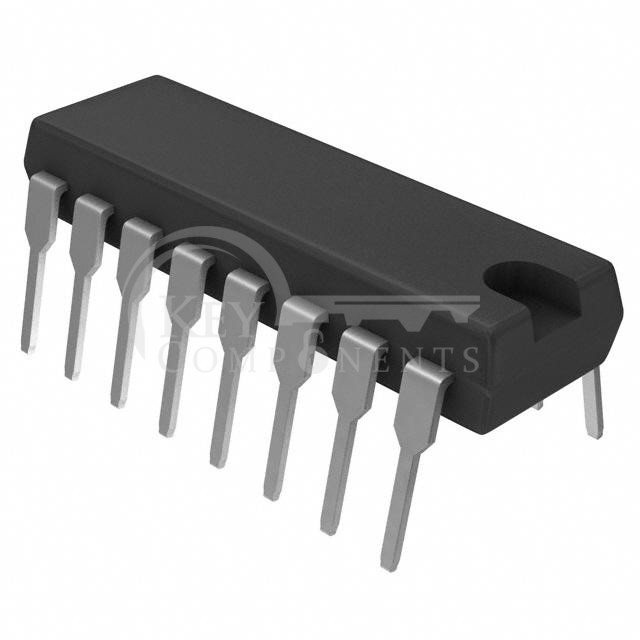

ISQ74X
| Manufacturer Part | ISQ74X |
|---|---|
| Manufacturer | Isocom Components 2004 LTD |
| Description | OPTOISO 5.3KV 4CH TRANS 16DIP |
| Category | Isolators |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Number of Channels: | 4 |
| Voltage - Isolation: | 5300Vrms |
| Current Transfer Ratio (Min): | 12.5% @ 16mA |
| Current Transfer Ratio (Max): | - |
| Turn On / Turn Off Time (Typ): | - |
| Rise / Fall Time (Typ): | 2.6µs, 2.2µs |
| Input Type: | DC |
| Output Type: | Transistor |
| Voltage - Output (Max): | 50V |
| Current - Output / Channel: | 50mA |
| Voltage - Forward (Vf) (Typ): | 1.2V |
| Current - DC Forward (If) (Max): | 50 mA |
| Vce Saturation (Max): | - |
| Operating Temperature: | -25°C ~ 100°C |
| Mounting Type: | Through Hole |
| Package / Case: | 16-DIP (0.300", 7.62mm) |
| Supplier Device Package: | - |
