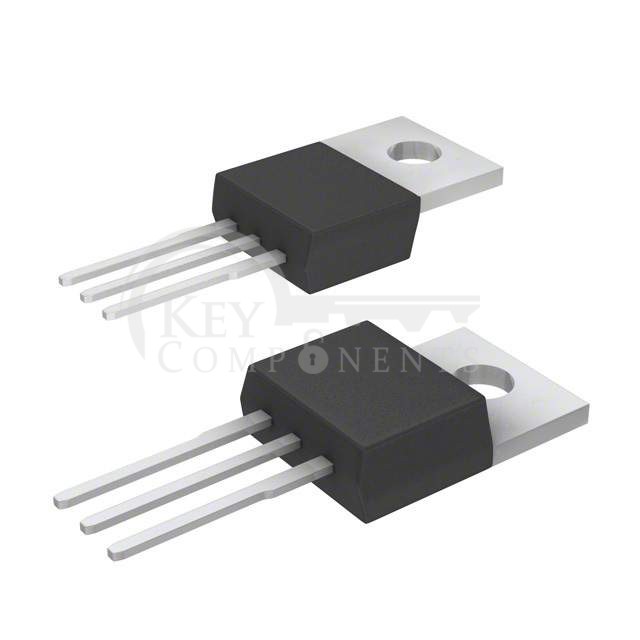

IXFP3N120

IXFP3N120

Manufacturer Part IXFP3N120
Manufacturer IXYS
Description MOSFET N-CH 1200V 3A TO220AB
Category Discrete Semiconductor Products
RoHS Lead free / RoHS Compliant
Warranty 365 days
Datasheet -
GB-T-27922
ISO-9001-2015
ISO-13485
ISO-14001
ISO-28000-2007
ISO-45001-2018
Product Attributes
Type Description
Product Status:Active
FET Type:N-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):1200 V
Current - Continuous Drain (Id) @ 25°C:3A (Tc)
Drive Voltage (Max Rds On, Min Rds On):10V
Rds On (Max) @ Id, Vgs:4.5Ohm @ 500mA, 10V
Vgs(th) (Max) @ Id:5V @ 1.5mA
Gate Charge (Qg) (Max) @ Vgs:39 nC @ 10 V
Vgs (Max):±20V
Input Capacitance (Ciss) (Max) @ Vds:1050 pF @ 25 V
FET Feature:-
Power Dissipation (Max):200W (Tc)
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Through Hole
Supplier Device Package:TO-220-3
Package / Case:TO-220-3
