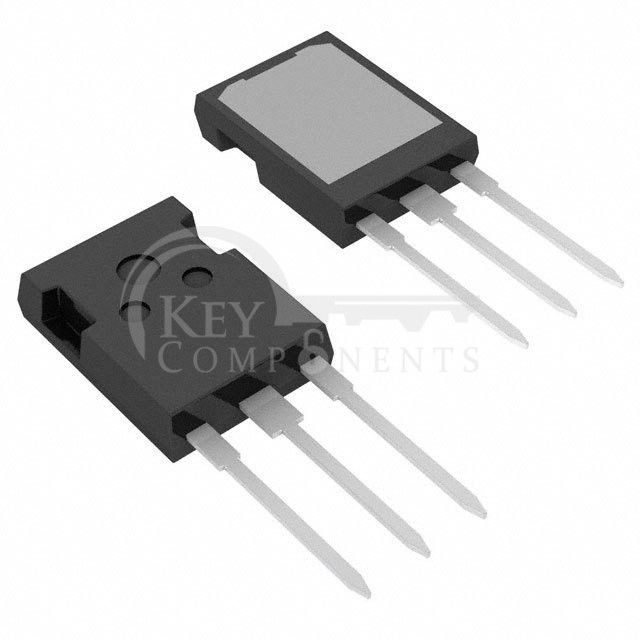

IXTX5N250

Manufacturer Part	IXTX5N250
Manufacturer	IXYS
Description	MOSFET N-CH 2500V 5A PLUS247-3
Category	Discrete Semiconductor Products
RoHS	Lead free / RoHS Compliant
Warranty	365 days
Datasheet	-

Type	Description
Product Status:	Active
FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	2500 V
Current - Continuous Drain (Id) @ 25°C:	5A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	10V
Rds On (Max) @ Id, Vgs:	8.8Ohm @ 2.5A, 10V
Vgs(th) (Max) @ Id:	5V @ 1mA
Gate Charge (Qg) (Max) @ Vgs:	200 nC @ 10 V
Vgs (Max):	±30V
Input Capacitance (Ciss) (Max) @ Vds:	8560 pF @ 25 V
FET Feature:	-
Power Dissipation (Max):	960W (Tc)
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Through Hole
Supplier Device Package:	PLUS247™-3
Package / Case:	TO-247-3 Variant
