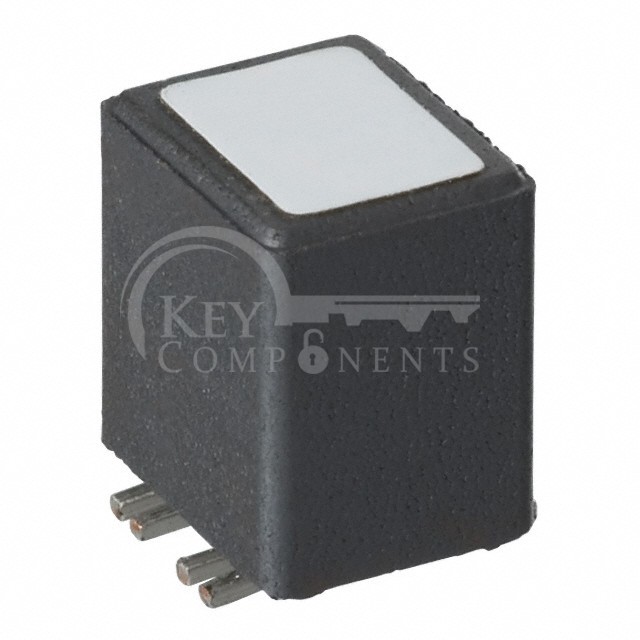

CM2722R151R-00
| Manufacturer Part | CM2722R151R-00 |
|---|---|
| Manufacturer | Laird-Signal Integrity Products |
| Description | CMC 5A 4LN 150 OHM SMD |
| Category | Filters |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Obsolete |
| Filter Type: | Power Line |
| Number of Lines: | 4 |
| Impedance @ Frequency: | 150 Ohms @ 100 MHz |
| Inductance @ Frequency: | - |
| Current Rating (Max): | 5A |
| DC Resistance (DCR) (Max): | 20mOhm |
| Voltage Rating - DC: | - |
| Voltage Rating - AC: | - |
| Operating Temperature: | -55°C ~ 125°C |
| Ratings: | - |
| Approval Agency: | - |
| Features: | - |
| Mounting Type: | Surface Mount |
| Size / Dimension: | 0.275" L x 0.265" W (6.99mm x 6.73mm) |
| Height (Max): | 0.331" (8.40mm) |
| Package / Case: | Vertical, 8 Flat Lead |
