S4025R
| Manufacturer Part | S4025R |
|---|---|
| Manufacturer | Littelfuse Inc. |
| Description | SCR 400V 25A TO220 |
| Category | Discrete Semiconductor Products |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Discontinued at Digi-Key |
| Voltage - Off State: | 400 V |
| Voltage - Gate Trigger (Vgt) (Max): | 1.5 V |
| Current - Gate Trigger (Igt) (Max): | 35 mA |
| Voltage - On State (Vtm) (Max): | 1.6 V |
| Current - On State (It (AV)) (Max): | 16 A |
| Current - On State (It (RMS)) (Max): | 25 A |
| Current - Hold (Ih) (Max): | 50 mA |
| Current - Off State (Max): | 10 µA |
| Current - Non Rep. Surge 50, 60Hz (Itsm): | 300A, 350A |
| SCR Type: | Standard Recovery |
| Operating Temperature: | -40°C ~ 125°C |
| Mounting Type: | Through Hole |

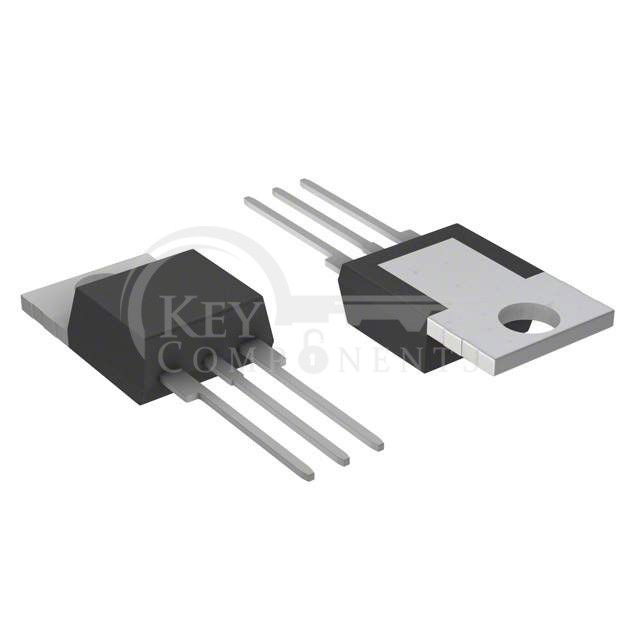

| Package / Case: | TO-220-3 |
| Supplier Device Package: | TO-220 Non-Isolated Tab |
