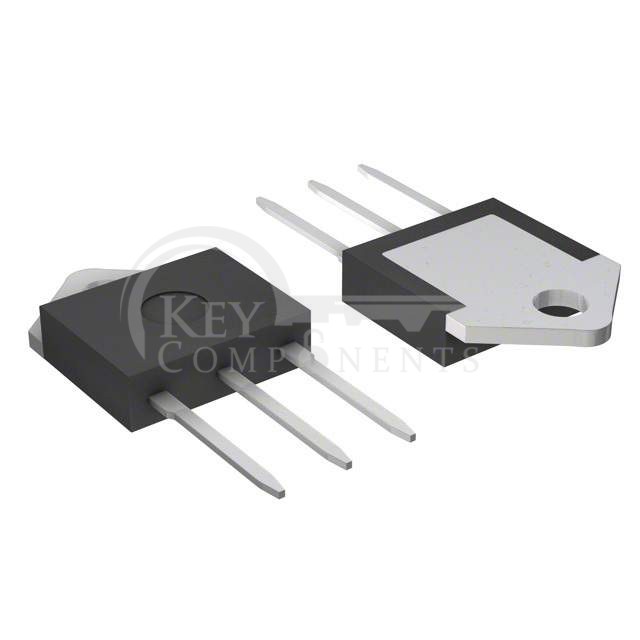

S8055M
| Manufacturer Part | S8055M |
|---|---|
| Manufacturer | Littelfuse Inc. |
| Description | SCR 800V 55A TO218 |
| Category | Discrete Semiconductor Products |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Obsolete |
| Voltage - Off State: | 800 V |
| Voltage - Gate Trigger (Vgt) (Max): | 1.5 V |
| Current - Gate Trigger (Igt) (Max): | 40 mA |
| Voltage - On State (Vtm) (Max): | 1.8 V |
| Current - On State (It (AV)) (Max): | 35 A |
| Current - On State (It (RMS)) (Max): | 55 A |
| Current - Hold (Ih) (Max): | 60 mA |
| Current - Off State (Max): | 20 µA |
| Current - Non Rep. Surge 50, 60Hz (Itsm): | 550A, 650A |
| SCR Type: | Standard Recovery |
| Operating Temperature: | -40°C ~ 125°C |
| Mounting Type: | Through Hole |
| Package / Case: | TO-218-3, TO-218AC |
| Supplier Device Package: | TO-218 Non-Isolated Tab |
