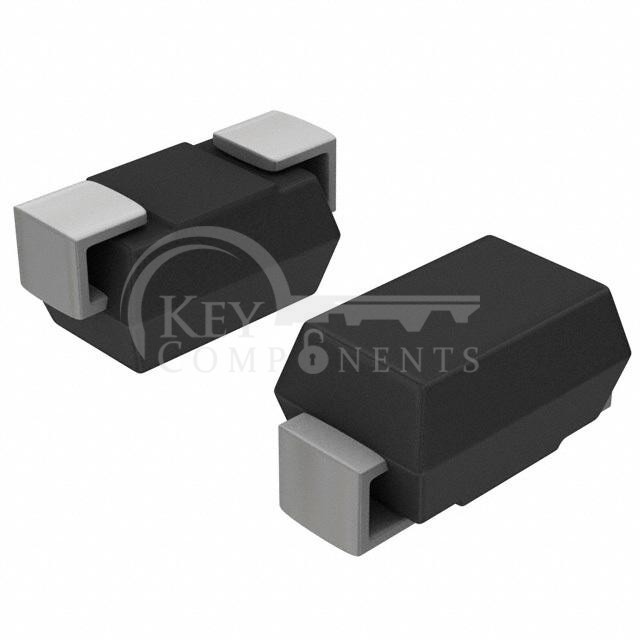

SMAJ14A
| Manufacturer Part | SMAJ14A |
|---|---|
| Manufacturer | Meritek |
| Description | TVS DIODE 14VWM 23.3VC |
| Category | Circuit Protection |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Type: | Zener |
| Unidirectional Channels: | 1 |
| Bidirectional Channels: | - |
| Voltage - Reverse Standoff (Typ): | 14V |
| Voltage - Breakdown (Min): | 15.6V |
| Voltage - Clamping (Max) @ Ipp: | 23.3V |
| Current - Peak Pulse (10/1000µs): | 17.24A |
| Power - Peak Pulse: | 400W |
| Power Line Protection: | - |
| Applications: | General Purpose |
| Capacitance @ Frequency: | - |
| Operating Temperature: | -55°C ~ 150°C |
| Mounting Type: | Surface Mount |
| Package / Case: | DO-214AC (SMA) |
| Supplier Device Package: | - |
