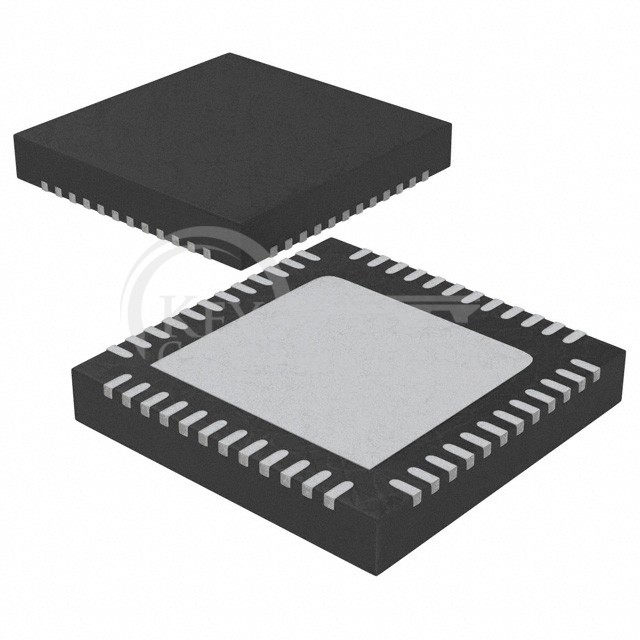

ATA5823C-PLQW
| Manufacturer Part | ATA5823C-PLQW |
|---|---|
| Manufacturer | Microchip Technology |
| Description | IC RF TXRX ISM<1GHZ 48VFQFN |
| Category | RF/IF and RFID |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Obsolete |
| Type: | TxRx Only |
| RF Family/Standard: | General ISM < 1GHz |
| Protocol: | - |
| Modulation: | ASK, FSK |
| Frequency: | 315MHz |
| Data Rate (Max): | 20kbps |
| Power - Output: | 10dBm |
| Sensitivity: | -116dBm |
| Memory Size: | - |
| Serial Interfaces: | SPI |
| GPIO: | - |
| Voltage - Supply: | 2.15V ~ 3.6V, 4.4V ~ 5.25V |
| Current - Receiving: | 10.5mA |
| Current - Transmitting: | 6.95mA ~ 15.8mA |
| Operating Temperature: | -40°C ~ 105°C |
| Mounting Type: | Surface Mount |
| Package / Case: | 48-VFQFN Exposed Pad |
| Supplier Device Package: | 48-VQFN (7x7) |
