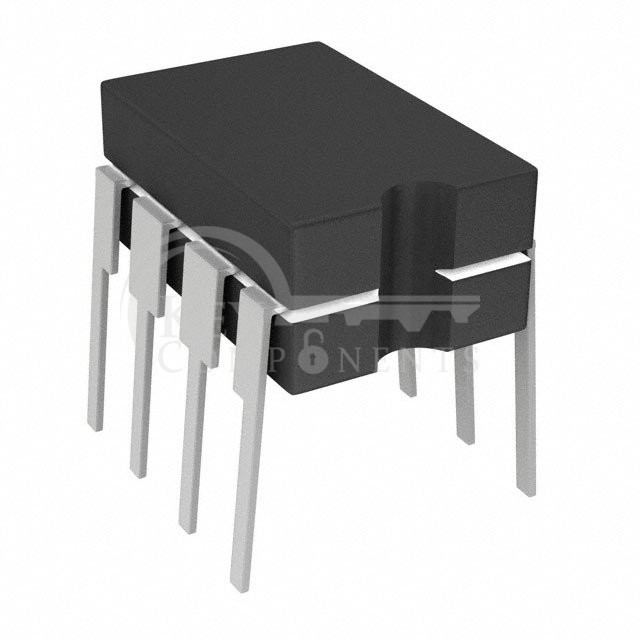

TC4420IJA
| Manufacturer Part | TC4420IJA |
|---|---|
| Manufacturer | Microchip Technology |
| Description | IC GATE DRVR LOW-SIDE 8CERDIP |
| Category | Integrated Circuits (ICs) |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Driven Configuration: | Low-Side |
| Channel Type: | Single |
| Number of Drivers: | 1 |
| Gate Type: | N-Channel, P-Channel MOSFET |
| Voltage - Supply: | 4.5V ~ 18V |
| Logic Voltage - VIL, VIH: | 0.8V, 2.4V |
| Current - Peak Output (Source, Sink): | 6A, 6A |
| Input Type: | Non-Inverting |
| High Side Voltage - Max (Bootstrap): | - |
| Rise / Fall Time (Typ): | 25ns, 25ns |
| Operating Temperature: | -25°C ~ 150°C (TJ) |
| Mounting Type: | Through Hole |
| Package / Case: | 8-CDIP (0.300", 7.62mm) |
| Supplier Device Package: | 8-CERDIP |
