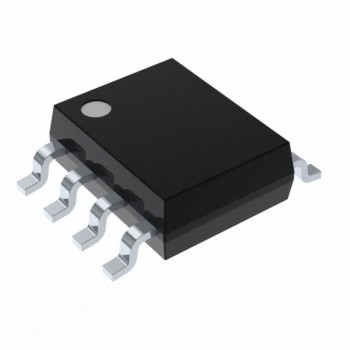

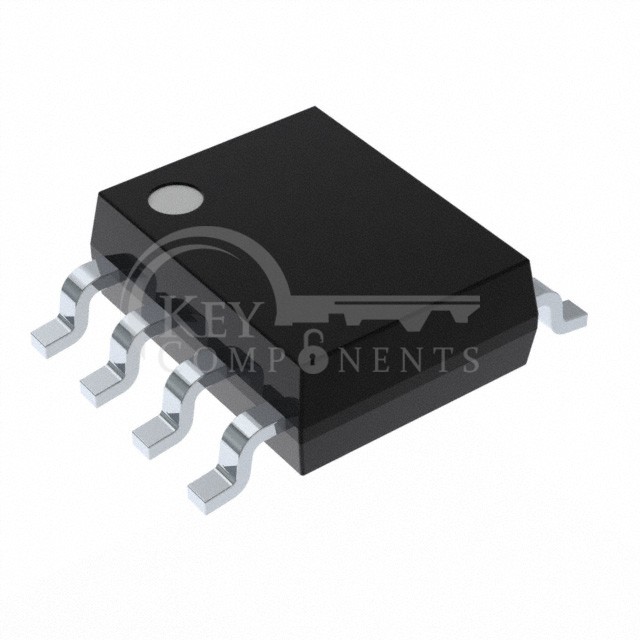

TC4422ESM
| Manufacturer Part | TC4422ESM |
|---|---|
| Manufacturer | Microchip Technology |
| Description | IC GATE DRVR LOW-SIDE 8SOIJ |
| Category | Integrated Circuits (ICs) |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Driven Configuration: | Low-Side |
| Channel Type: | Single |
| Number of Drivers: | 1 |
| Gate Type: | IGBT, N-Channel, P-Channel MOSFET |
| Voltage - Supply: | 4.5V ~ 18V |
| Logic Voltage - VIL, VIH: | 0.8V, 2.4V |
| Current - Peak Output (Source, Sink): | 9A, 9A |
| Input Type: | Non-Inverting |
| High Side Voltage - Max (Bootstrap): | - |
| Rise / Fall Time (Typ): | 60ns, 60ns |
| Operating Temperature: | -40°C ~ 150°C (TJ) |
| Mounting Type: | Surface Mount |
| Package / Case: | 8-SOIC (0.209", 5.30mm Width) |
| Supplier Device Package: | 8-SOIJ |
