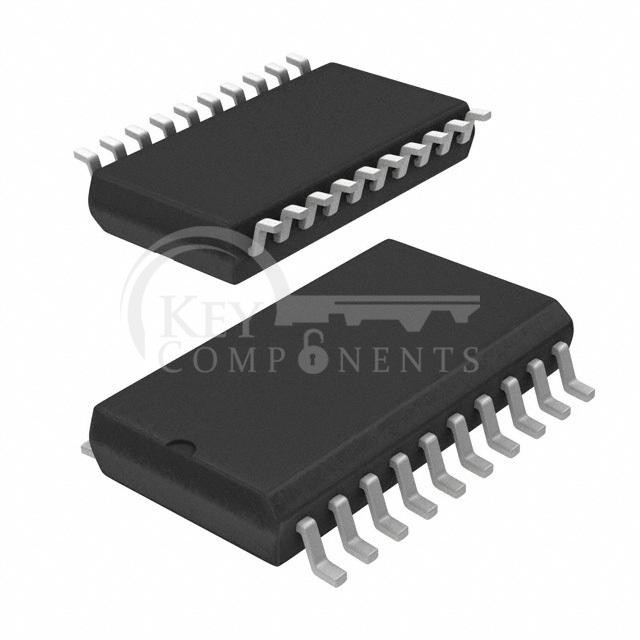

AMIS30623C6238RG

AMIS30623C6238RG

Manufacturer Part AMIS30623C6238RG
Manufacturer onsemi
Description IC MTR DRV BIPOLR 6.5-29V 20SOIC
Category Integrated Circuits (ICs)
RoHS Lead free / RoHS Compliant
Warranty 365 days
Datasheet -
GB-T-27922
ISO-9001-2015
ISO-13485
ISO-14001
ISO-28000-2007
ISO-45001-2018
Product Attributes
Type Description
Product Status:Obsolete
Motor Type - Stepper:Bipolar
Motor Type - AC, DC:-
Function:Driver - Fully Integrated, Control and Power Stage
Output Configuration:Half Bridge (4)
Interface:LIN
Technology:-
Step Resolution:1/2, 1/4, 1/8, 1/16
Applications:General Purpose
Current - Output:570mA
Voltage - Supply:6.5V ~ 29V
Voltage - Load:6.5V ~ 29V
Operating Temperature:-40°C ~ 165°C (TJ)
Mounting Type:Surface Mount
Package / Case:20-SOIC (0.295", 7.50mm Width)
Supplier Device Package:20-SOIC
