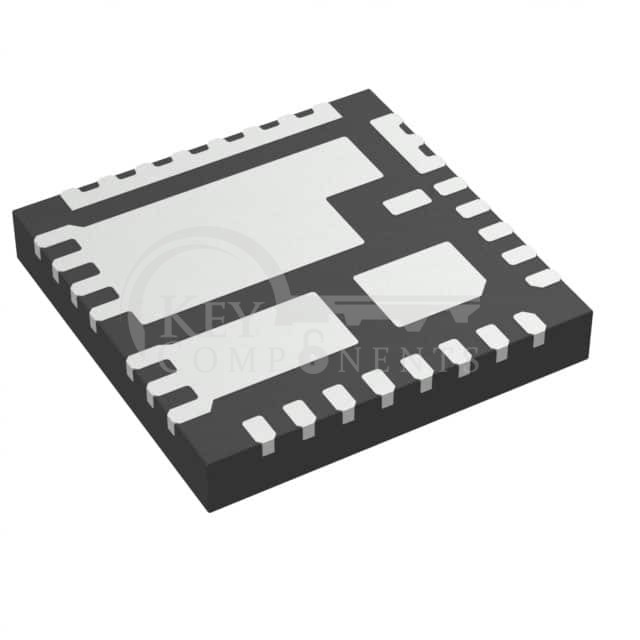

NCP302150MNTWG
| Manufacturer Part | NCP302150MNTWG |
|---|---|
| Manufacturer | onsemi |
| Description | IC GATE DRVR HI/LOW SIDE PQFN31 |
| Category | Integrated Circuits (ICs) |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Driven Configuration: | High-Side or Low-Side |
| Channel Type: | Single |
| Number of Drivers: | 2 |
| Gate Type: | N-Channel MOSFET |
| Voltage - Supply: | 4.5V ~ 5.5V |
| Logic Voltage - VIL, VIH: | 0.7V, 2.65V |
| Current - Peak Output (Source, Sink): | 2A, 2.5A |
| Input Type: | Non-Inverting |
| High Side Voltage - Max (Bootstrap): | 35 V |
| Rise / Fall Time (Typ): | 12ns, 6ns |
| Operating Temperature: | -40°C ~ 125°C (TJ) |
| Mounting Type: | Surface Mount |
| Package / Case: | 31-PowerWFQFN |
| Supplier Device Package: | 31-PQFN (5x5) |
