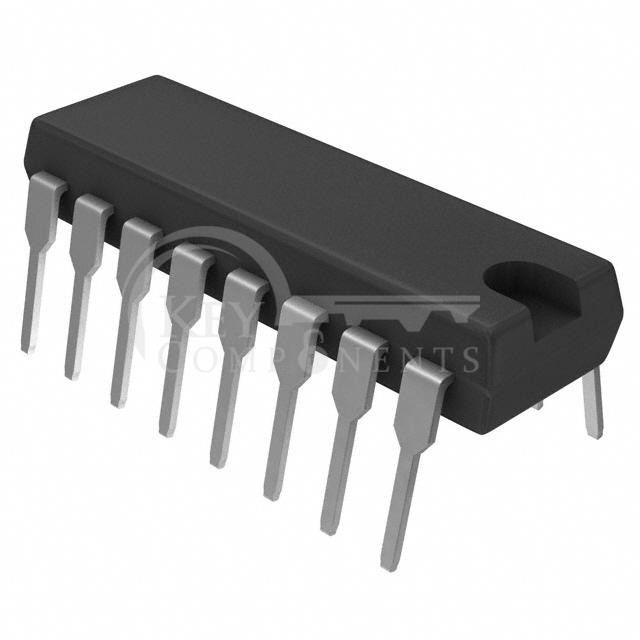

TDA1085C
| Manufacturer Part | TDA1085C |
|---|---|
| Manufacturer | onsemi |
| Description | IC MOTOR DRIVER 15V-16V 16DIP |
| Category | Integrated Circuits (ICs) |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Obsolete |
| Motor Type - Stepper: | - |
| Motor Type - AC, DC: | Universal |
| Function: | Triac Controller |
| Output Configuration: | Pre-Driver - Triac |
| Interface: | Parallel |
| Technology: | - |
| Step Resolution: | - |
| Applications: | Appliance |
| Current - Output: | - |
| Voltage - Supply: | 15V ~ 16V |
| Voltage - Load: | - |
| Operating Temperature: | -10°C ~ 120°C (TJ) |
| Mounting Type: | Through Hole |
| Package / Case: | 16-DIP (0.300", 7.62mm) |
| Supplier Device Package: | 16-PDIP |
