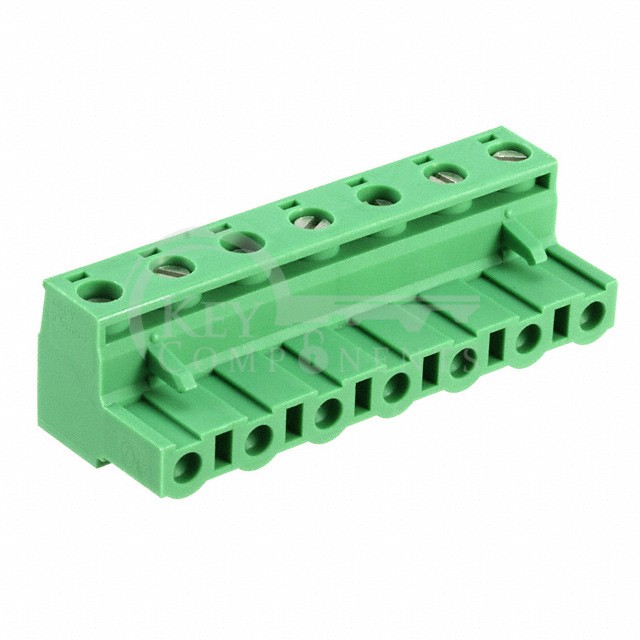

1767054
| Manufacturer Part | 1767054 |
|---|---|
| Manufacturer | Phoenix Contact |
| Description | TERM BLOCK PLUG 7POS STR 7.62MM |
| Category | Connectors, Interconnects |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Type: | Plug, Female Sockets |
| Number of Positions: | 7 |
| Positions Per Level: | 7 |
| Number of Levels: | 1 |
| Pitch: | 0.300" (7.62mm) |
| Header Orientation: | - |
| Plug Wire Entry: | 180° |
| Termination Style: | Screw - Rising Cage Clamp |
| Mounting Type: | Free Hanging (In-Line) |
| Current - IEC: | 12A |
| Voltage - IEC: | 1 kV |
| Current - UL: | 15 A |
| Voltage - UL: | 300 V |
| Wire Gauge or Range - AWG: | 12-30 AWG |
| Wire Gauge or Range - mm²: | 0.2-2.5mm² |
| Color: | Green |
| Operating Temperature: | - |
| Contact Mating Finish: | Tin |
| Features: | Retention Latches (Non-Wire Side) |
