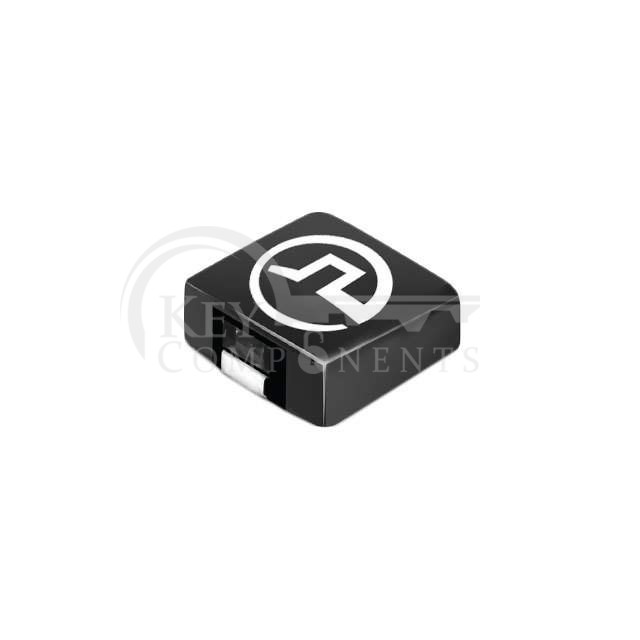

PG0426.331NLT
| Manufacturer Part | PG0426.331NLT |
|---|---|
| Manufacturer | Pulse Electronics Power |
| Description | FIXED IND 330NH 20A 3.4 MOHM SMD |
| Category | Inductors, Coils, Chokes |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Type: | Wirewound |
| Material - Core: | - |
| Inductance: | 330 nH |
| Tolerance: | ±20% |
| Current Rating (Amps): | 20 A |
| Current - Saturation (Isat): | 34A |
| Shielding: | Shielded |
| DC Resistance (DCR): | 3.4mOhm Max |
| Q @ Freq: | - |
| Frequency - Self Resonant: | - |
| Ratings: | - |
| Operating Temperature: | -40°C ~ 130°C |
| Inductance Frequency - Test: | 100 kHz |
| Features: | - |
| Mounting Type: | Surface Mount |
| Package / Case: | Nonstandard |
| Supplier Device Package: | - |
| Size / Dimension: | 0.295" L x 0.276" W (7.50mm x 7.00mm) |
| Height - Seated (Max): | 0.126" (3.20mm) |
