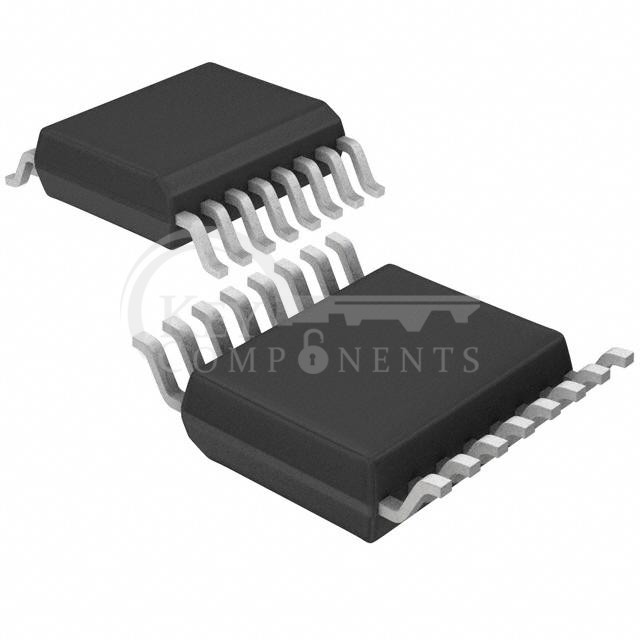

ISL6752AAZA
| Manufacturer Part | ISL6752AAZA |
|---|---|
| Manufacturer | Renesas Electronics America Inc |
| Description | IC REG CTRLR FULL-BRIDGE 16QSOP |
| Category | Integrated Circuits (ICs) |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Output Type: | Transistor Driver |
| Function: | Step-Up/Step-Down |
| Output Configuration: | Positive, Isolation Capable |
| Topology: | Full-Bridge |
| Number of Outputs: | 1 |
| Output Phases: | 1 |
| Voltage - Supply (Vcc/Vdd): | 9V ~ 16V |
| Frequency - Switching: | Up to 2MHz |
| Duty Cycle (Max): | 99% |
| Synchronous Rectifier: | Yes |
| Clock Sync: | No |
| Serial Interfaces: | - |
| Control Features: | Frequency Control |
| Operating Temperature: | -40°C ~ 105°C (TA) |
| Mounting Type: | Surface Mount |
| Package / Case: | 16-SSOP (0.154", 3.90mm Width) |
| Supplier Device Package: | 16-QSOP |
