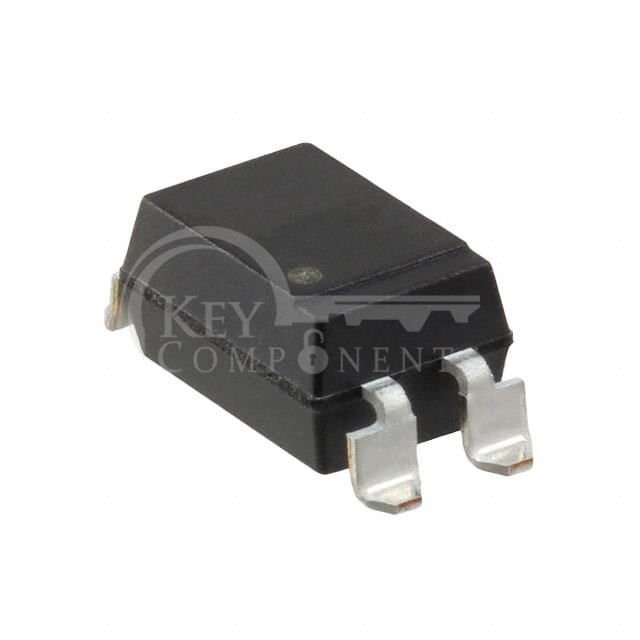

PS2502L-1-F3-A
| Manufacturer Part | PS2502L-1-F3-A |
|---|---|
| Manufacturer | Renesas Electronics America Inc |
| Description | OPTOISOLATOR 5KV DARL 4SMD |
| Category | Isolators |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Not For New Designs |
| Number of Channels: | 1 |
| Voltage - Isolation: | 5000Vrms |
| Current Transfer Ratio (Min): | 200% @ 1mA |
| Current Transfer Ratio (Max): | - |
| Turn On / Turn Off Time (Typ): | - |
| Rise / Fall Time (Typ): | 100µs, 100µs |
| Input Type: | DC |
| Output Type: | Darlington |
| Voltage - Output (Max): | 40V |
| Current - Output / Channel: | 200mA |
| Voltage - Forward (Vf) (Typ): | 1.17V |
| Current - DC Forward (If) (Max): | 80 mA |
| Vce Saturation (Max): | 1V |
| Operating Temperature: | -55°C ~ 100°C |
| Mounting Type: | Surface Mount |
| Package / Case: | 4-SMD, Gull Wing |
| Supplier Device Package: | 4-SMD |
