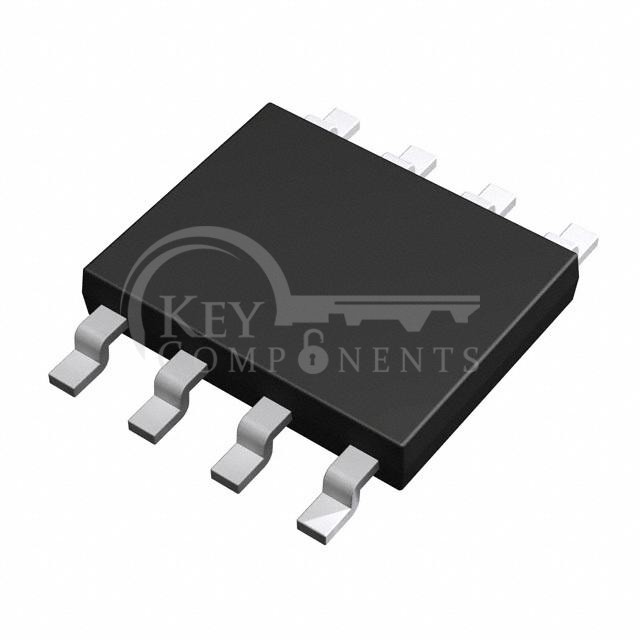

RSS120N03TB

Manufacturer Part	RSS120N03TB
Manufacturer	Rohm Semiconductor
Description	MOSFET N-CH 30V 12A 8SOP
Category	Discrete Semiconductor Products
RoHS	Lead free / RoHS Compliant
Warranty	365 days
Datasheet	-

Type	Description
Product Status:	Obsolete
FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	30 V
Current - Continuous Drain (Id) @ 25°C:	12A (Ta)
Drive Voltage (Max Rds On, Min Rds On):	4V, 10V
Rds On (Max) @ Id, Vgs:	10mOhm @ 12A, 10V
Vgs(th) (Max) @ Id:	2.5V @ 1mA
Gate Charge (Qg) (Max) @ Vgs:	25 nC @ 5 V
Vgs (Max):	20V
Input Capacitance (Ciss) (Max) @ Vds:	1360 pF @ 10 V
FET Feature:	-
Power Dissipation (Max):	2W (Ta)
Operating Temperature:	150°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	8-SOP
Package / Case:	8-SOIC (0.154", 3.90mm Width)
