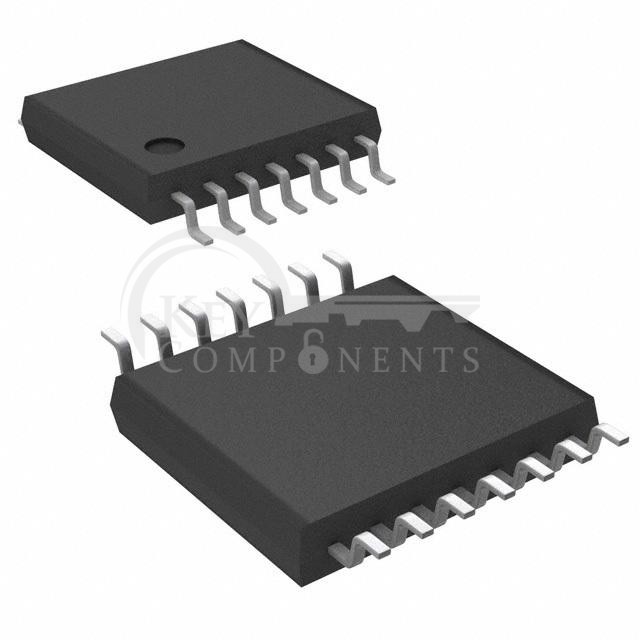

74AC04TTR
| Manufacturer Part | 74AC04TTR |
|---|---|
| Manufacturer | STMicroelectronics |
| Description | IC INVERTER 6CH 1-INP 14TSSOP |
| Category | Integrated Circuits (ICs) |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Obsolete |
| Logic Type: | Inverter |
| Number of Circuits: | 6 |
| Number of Inputs: | 1 |
| Features: | - |
| Voltage - Supply: | 2V ~ 6V |
| Current - Quiescent (Max): | 2 µA |
| Current - Output High, Low: | 24mA, 24mA |
| Logic Level - Low: | 0.9V ~ 1.65V |
| Logic Level - High: | 2.1V ~ 3.85V |
| Max Propagation Delay @ V, Max CL: | 8ns @ 5V, 50pF |
| Operating Temperature: | -55°C ~ 125°C |
| Mounting Type: | Surface Mount |
| Supplier Device Package: | 14-TSSOP |
| Package / Case: | 14-TSSOP (0.173", 4.40mm Width) |
