STGB7NC60HDT4

Manufacturer Part	STGB7NC60HDT4
Manufacturer	STMicroelectronics
Description	IGBT 600V 25A 80W D2PAK
Category	Discrete Semiconductor Products
RoHS	Lead free / RoHS Compliant
Warranty	365 days
Datasheet	-

Type	Description
Product Status:	Active
IGBT Type:	-
Voltage - Collector Emitter Breakdown (Max):	600 V
Current - Collector (Ic) (Max):	25 A
Current - Collector Pulsed (Icm):	50 A
Vce(on) (Max) @ Vge, Ic:	2.5V @ 15V, 7A
Power - Max:	80 W
Switching Energy:	95µJ (on), 115µJ (off)
Input Type:	Standard
Gate Charge:	35 nC
Td (on/off) @ 25°C:	18.5ns/72ns
Test Condition:	390V, 7A, 10Ohm, 15V
Reverse Recovery Time (trr):	37 ns
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount

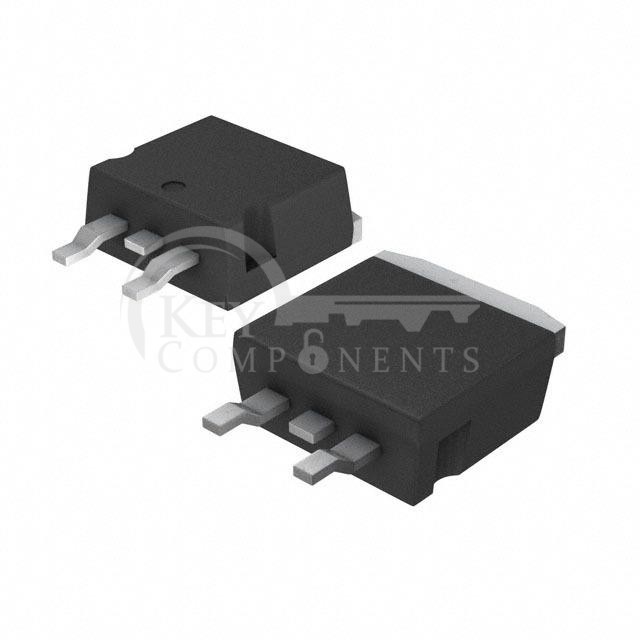

Package / Case:	TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package:	D2PAK
