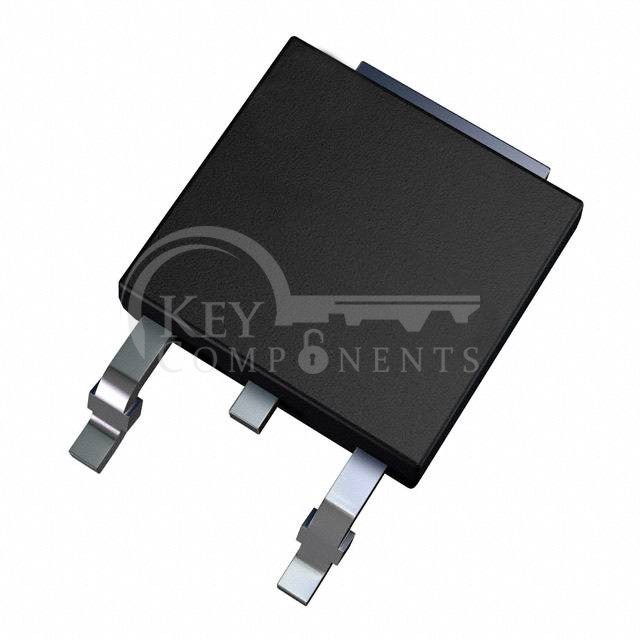

TS820-600B
| Manufacturer Part | TS820-600B |
|---|---|
| Manufacturer | STMicroelectronics |
| Description | SCR 600V 8A DPAK |
| Category | Discrete Semiconductor Products |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Voltage - Off State: | 600 V |
| Voltage - Gate Trigger (Vgt) (Max): | 800 mV |
| Current - Gate Trigger (Igt) (Max): | 200 µA |
| Voltage - On State (Vtm) (Max): | 1.6 V |
| Current - On State (It (AV)) (Max): | 5 A |
| Current - On State (It (RMS)) (Max): | 8 A |
| Current - Hold (Ih) (Max): | 5 mA |
| Current - Off State (Max): | 5 µA |
| Current - Non Rep. Surge 50, 60Hz (Itsm): | 70A, 73A |
| SCR Type: | Sensitive Gate |
| Operating Temperature: | -40°C ~ 125°C |
| Mounting Type: | Surface Mount |
| Package / Case: | TO-252-3, DPak (2 Leads + Tab), SC-63 |
| Supplier Device Package: | DPAK |
