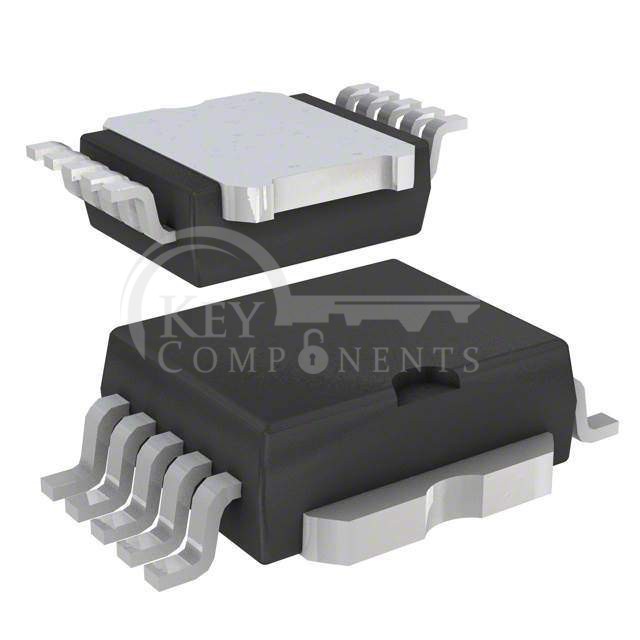

VN380SP13TR
| Manufacturer Part | VN380SP13TR |
|---|---|
| Manufacturer | STMicroelectronics |
| Description | IC PWR DRVR BIPOLAR 2:1 PWRSO10 |
| Category | Integrated Circuits (ICs) |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Obsolete |
| Switch Type: | Relay, Solenoid Driver |
| Number of Outputs: | 1 |
| Ratio - Input:Output: | 2:1 |
| Output Configuration: | High Side |
| Output Type: | Bipolar |
| Interface: | On/Off |
| Voltage - Load: | 6V ~ 24V |
| Voltage - Supply (Vcc/Vdd): | Not Required |
| Current - Output (Max): | 5A |
| Rds On (Typ): | 110mOhm |
| Input Type: | - |
| Features: | Status Flag |
| Fault Protection: | Open Load Detect, Over Temperature, Over Voltage |
| Operating Temperature: | -40°C ~ 150°C (TJ) |
| Mounting Type: | Surface Mount |
| Supplier Device Package: | PowerSO-10 |
| Package / Case: | PowerSO-10 Exposed Bottom Pad |
