VN808CM
| Manufacturer Part | VN808CM |
|---|---|
| Manufacturer | STMicroelectronics |
| Description | IC PWR DRIVER N-CHAN 1:1 PWRSO36 |
| Category | Integrated Circuits (ICs) |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Obsolete |
| Switch Type: | General Purpose |
| Number of Outputs: | 8 |
| Ratio - Input:Output: | 1:1 |
| Output Configuration: | High Side |
| Output Type: | N-Channel |
| Interface: | On/Off |
| Voltage - Load: | 10.5V ~ 45V |
| Voltage - Supply (Vcc/Vdd): | Not Required |
| Current - Output (Max): | 700mA |
| Rds On (Typ): | 160mOhm (Max) |
| Input Type: | Non-Inverting |
| Features: | Auto Restart, Status Flag |
| Fault Protection: | Current Limiting (Fixed), Over Temperature |
| Operating Temperature: | -40°C ~ 125°C (TJ) |
| Mounting Type: | Surface Mount |

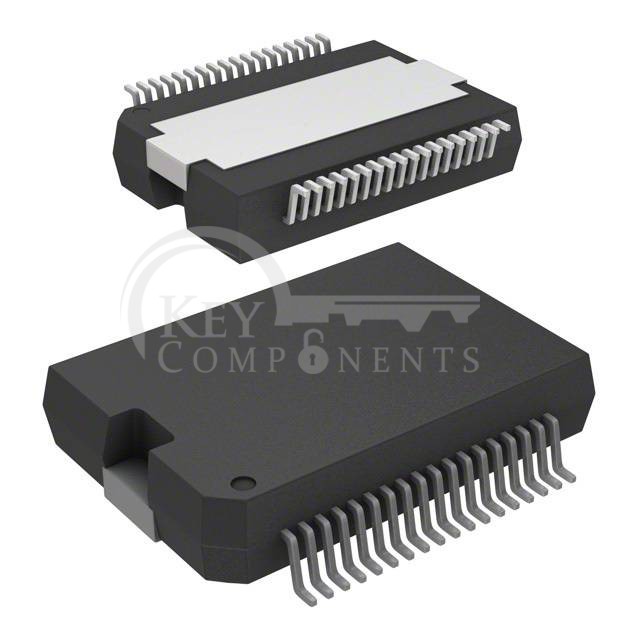

| Supplier Device Package: | PowerSO-36, Bottom Pad |
| Package / Case: | 36-PowerBSSOP (0.433", 11.00mm Width) |
