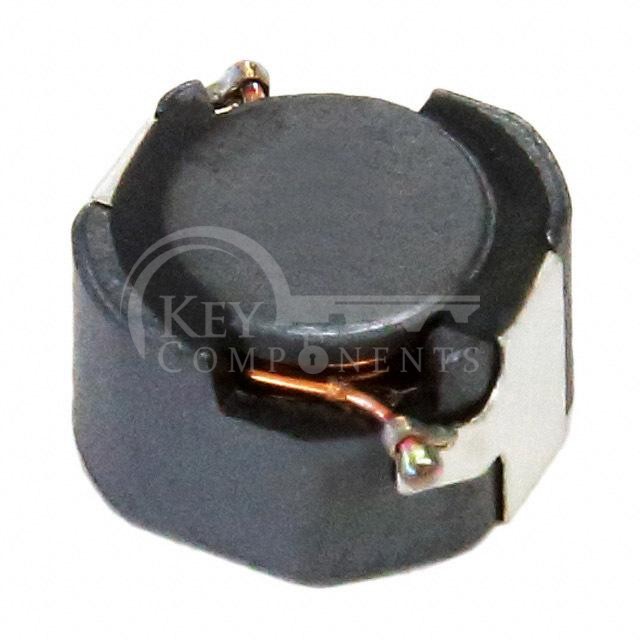

CLF7045T-1R0N-H
| Manufacturer Part | CLF7045T-1R0N-H |
|---|---|
| Manufacturer | TDK Corporation |
| Description | FIXED IND 1UH 8.9A 9.6 MOHM SMD |
| Category | Inductors, Coils, Chokes |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Not For New Designs |
| Type: | Drum Core, Wirewound |
| Material - Core: | Ferrite |
| Inductance: | 1 µH |
| Tolerance: | ±30% |
| Current Rating (Amps): | 8.9 A |
| Current - Saturation (Isat): | 5.2A |
| Shielding: | Shielded |
| DC Resistance (DCR): | 9.6mOhm |
| Q @ Freq: | - |
| Frequency - Self Resonant: | - |
| Ratings: | - |
| Operating Temperature: | -40°C ~ 125°C |
| Inductance Frequency - Test: | 100 kHz |
| Features: | - |
| Mounting Type: | Surface Mount |
| Package / Case: | Nonstandard |
| Supplier Device Package: | - |
| Size / Dimension: | 0.283" L x 0.272" W (7.20mm x 6.90mm) |
| Height - Seated (Max): | 0.177" (4.50mm) |
