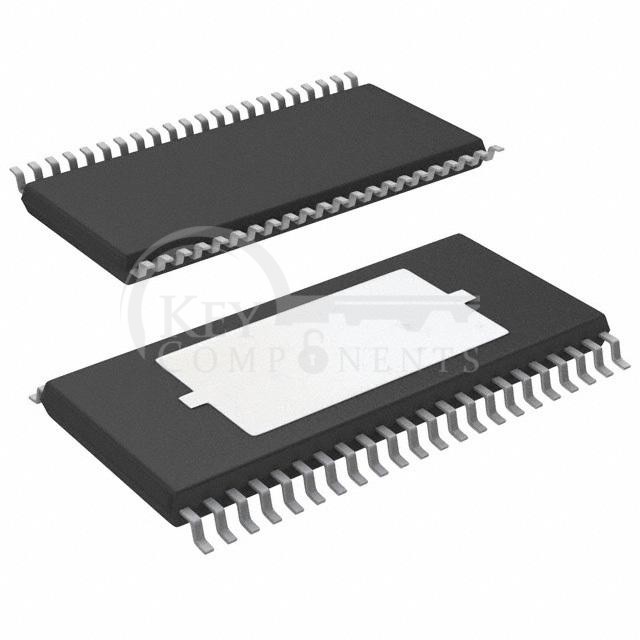

DRV8412DDWR
| Manufacturer Part | DRV8412DDWR |
|---|---|
| Manufacturer | Texas Instruments |
| Description | IC BRIDGE DRIVER PAR 44HTSSOP |
| Category | Integrated Circuits (ICs) |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Output Configuration: | Half Bridge (4) |
| Applications: | DC Motors, Stepper Motors |
| Interface: | PWM |
| Load Type: | Inductive |
| Technology: | Power MOSFET |
| Rds On (Typ): | 110mOhm LS, 110mOhm HS |
| Current - Output / Channel: | 3A |
| Current - Peak Output: | 6A |
| Voltage - Supply: | 10.8V ~ 13.2V |
| Voltage - Load: | 0V ~ 52.5V |
| Operating Temperature: | -40°C ~ 150°C (TJ) |
| Features: | Status Flag |
| Fault Protection: | Current Limiting, Over Temperature, Short Circuit, UVLO |
| Mounting Type: | Surface Mount |
| Package / Case: | 44-TSSOP (0.244", 6.20mm Width) Exposed Pad |
| Supplier Device Package: | 44-HTSSOP |
