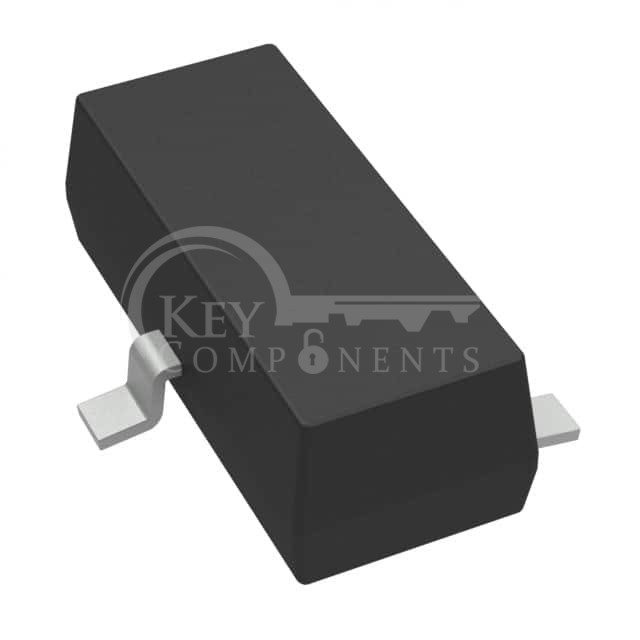

REF3020AIDBZR
| Manufacturer Part | REF3020AIDBZR |
|---|---|
| Manufacturer | Texas Instruments |
| Description | IC VREF SERIES 0.2% SOT23-3 |
| Category | Integrated Circuits (ICs) |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Reference Type: | Series |
| Output Type: | Fixed |
| Voltage - Output (Min/Fixed): | 2.048V |
| Voltage - Output (Max): | - |
| Current - Output: | 25 mA |
| Tolerance: | ±0.2% |
| Temperature Coefficient: | 75ppm/°C |
| Noise - 0.1Hz to 10Hz: | 23µVp-p |
| Noise - 10Hz to 10kHz: | 65µVrms |
| Voltage - Input: | 2.098V ~ 5.5V |
| Current - Supply: | 50µA |
| Current - Cathode: | - |
| Operating Temperature: | -40°C ~ 125°C (TA) |
| Mounting Type: | Surface Mount |
| Package / Case: | TO-236-3, SC-59, SOT-23-3 |
| Supplier Device Package: | SOT-23-3 |
