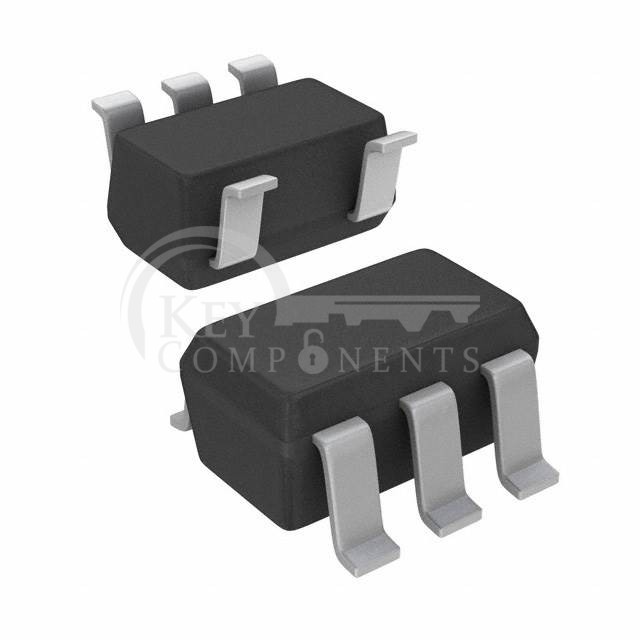

TLVH431BCDBVT
| Manufacturer Part | TLVH431BCDBVT |
|---|---|
| Manufacturer | Texas Instruments |
| Description | IC VREF SHUNT ADJ 0.5% SOT23-5 |
| Category | Integrated Circuits (ICs) |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Reference Type: | Shunt |
| Output Type: | Adjustable |
| Voltage - Output (Min/Fixed): | 1.24V |
| Voltage - Output (Max): | 18 V |
| Current - Output: | 70 mA |
| Tolerance: | ±0.5% |
| Temperature Coefficient: | - |
| Noise - 0.1Hz to 10Hz: | - |
| Noise - 10Hz to 10kHz: | - |
| Voltage - Input: | - |
| Current - Supply: | - |
| Current - Cathode: | 100 µA |
| Operating Temperature: | 0°C ~ 70°C (TA) |
| Mounting Type: | Surface Mount |
| Package / Case: | SC-74A, SOT-753 |
| Supplier Device Package: | SOT-23-5 |
