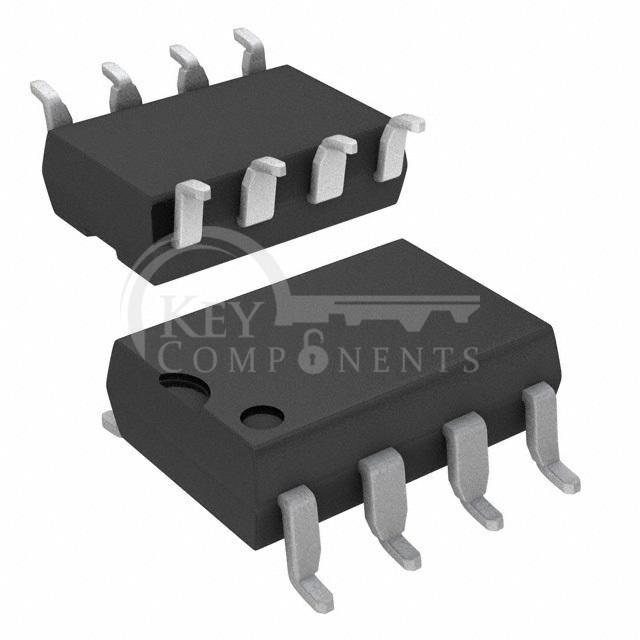

Manufacturer Part | SFH6345-X009T |
---|---|
Manufacturer | Vishay Semiconductor Opto Division |
Description | OPTOISOLATOR 5.3KV TRANS 8SMD |
Category | Isolators |
RoHS | Lead free / RoHS Compliant |
Warranty | 365 days |
Datasheet | - |
Type | Description |
---|---|
Product Status: | Active |
Number of Channels: | 1 |
Voltage - Isolation: | 5300Vrms |
Current Transfer Ratio (Min): | 19% @ 16mA |
Current Transfer Ratio (Max): | - |
Turn On / Turn Off Time (Typ): | 300ns, 300ns |
Rise / Fall Time (Typ): | - |
Input Type: | DC |
Output Type: | Transistor |
Voltage - Output (Max): | 25V |
Current - Output / Channel: | 8mA |
Voltage - Forward (Vf) (Typ): | 1.33V |
Current - DC Forward (If) (Max): | 25 mA |
Vce Saturation (Max): | 400mV |
Operating Temperature: | -55°C ~ 100°C |
Mounting Type: | Surface Mount |
Package / Case: | 8-SMD, Gull Wing |
Supplier Device Package: | 8-SMD |
